Schneider Electric D224NRB Safety switch, general duty, fusible, 200A, 2 poles, 60 hp, 120 VAC, NEMA 3R, bolt-on provision, neutral factory installed
Normally In Stock
Code: 110400
Schneider Electric D224NRB Safety switch, general duty, fusible, 200A, 2 poles, 60 hp, 120 VAC, NEMA 3R, bolt-on provision, neutral factory installed
Condition: New
CALL FOR LEAD TIME$940.80
Sale Price
$784.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

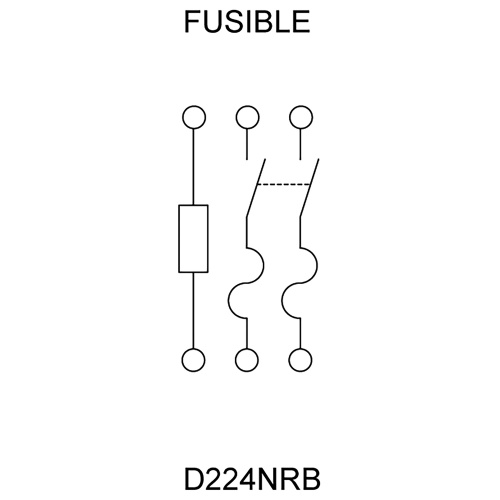

Safety switch, general duty, fusible, 200A, 2 poles, 60 hp, 120 VAC, NEMA 3R, bolt-on provision, neutral factory installed
Specifications
Enclosure Disconnect Type
Fusible Disconnect Switch
Enclosure Mount Type-Pushbutton Holes
Surface
Enclosure Disconnect Type
Single Throw Safety Switch
Enclosure NEMA Rating
NEMA 3R
Manufacturer
Schneider Electric
Component
Fusible Disconnect Switch
Sub Component
Single Throw Safety Switch

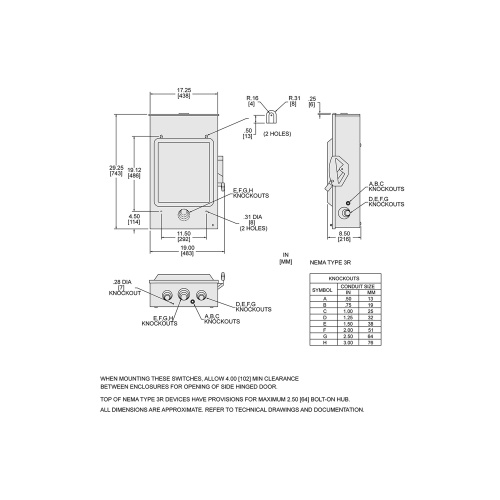

Disconnect Enclosure Height
29.25 In
Disconnect Enclosure Depth
8.5 In
Disconnect Enclosure Width
19 In
Enclosure Environment Rating
Indoor
Features
Designed for residential and commercial applications
Provides over-current and short circuit protection
Excellent for disconnecting lighting, air condition, and appliances
