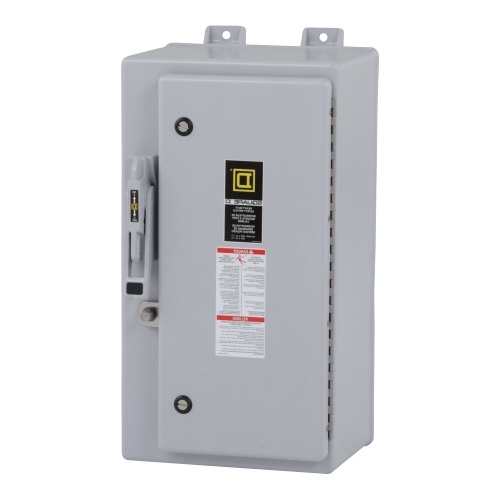

Schneider Electric H363DF Safety switch, heavy duty, fusible, 100A, 3 poles, 100 hp, 600 VAC/DC, NEMA 4X, fiberglass reinforced polyester
Normally In Stock
Code: 109919
Schneider Electric H363DF Safety switch, heavy duty, fusible, 100A, 3 poles, 100 hp, 600 VAC/DC, NEMA 4X, fiberglass reinforced polyester
Condition: New
CALL FOR LEAD TIME$10402.40
Sale Price
$8668.67
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Safety switch, heavy duty, fusible, 100A, 3 poles, 100 hp, 600 VAC/DC, NEMA 4X, fiberglass reinforced polyester
Specifications
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Composition
Fiberglass
Enclosure Disconnect Type
Fusible Disconnect Switch
Enclosure Mount Type-Pushbutton Holes
Surface
Enclosure Disconnect Type
Single Throw Safety Switch
Enclosure NEMA Rating
NEMA 4X
Manufacturer
Schneider Electric
Component
Fusible Disconnect Switch
Sub Component
Single Throw Safety Switch
Disconnect Enclosure Height
24.78 In
Disconnect Enclosure Width
13.7 In
Disconnect Enclosure Depth
12 In
Features
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions
Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities
F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require
The design life of a F-Series switch is a minimum of three times the NEMA requirement
An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches
The more copper for current carrying paths, the lower the temperature rise
Managing temperatures inside the switch is the key to providing greater service life
This heavy duty Single Throw Safety Switch has a rated current of 100A and has a NEMA 4X degree of protection
This fusible disconnect has a short circuit rating of 200kA@600VAC
This safety switch has a fiberglass reinforced polyester enclosure and is surface mounted
This product os compatable with H or K, R, J or L fuses
The acceptable AWG gauge for this product is AWG 12 / AWG 1/0, aluminiumand has a tightening torque of 50-50 lbf.in
T,his product complys to UL listed file E2875 standards and comes with an 18 month warranty
Dimensions for this product are 24.78 in (H), 13.7 in (W), 12 in (D).
