Schneider Electric H361DF Safety switch, heavy duty, fusible, 30A, 3 poles, 20 hp, 20 hp, 600 VAC/DC, NEMA 4X, fiberglass reinforced polyester
Normally In Stock
Code: 109841
Schneider Electric H361DF Safety switch, heavy duty, fusible, 30A, 3 poles, 20 hp, 20 hp, 600 VAC/DC, NEMA 4X, fiberglass reinforced polyester
Condition: New
CALL FOR LEAD TIME$4878.05
Sale Price
$4065.04
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Safety switch, heavy duty, fusible, 30A, 3 poles, 20 hp, 20 hp, 600 VAC/DC, NEMA 4X, fiberglass reinforced polyester
Specifications
Voltage
240 VAC
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Composition
Fiberglass
Enclosure Disconnect Type
Fusible Disconnect Switch
Enclosure Mount Type-Pushbutton Holes
Surface
Enclosure Disconnect Type
Single Throw Safety Switch
Enclosure NEMA Rating
NEMA 4X
Manufacturer
Schneider Electric
Component
Fusible Disconnect Switch
Sub Component
Single Throw Safety Switch

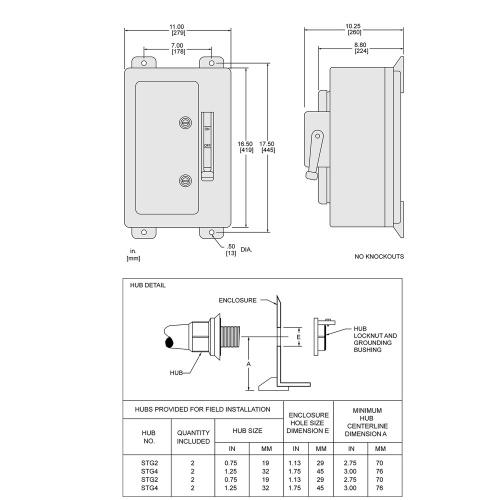

Disconnect Enclosure Height
16.5 In
Disconnect Enclosure Width
11 In
Disconnect Enclosure Depth
8.8 In
Current Rating
200 Amp
Voltage
250 VDC
Features
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions
They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard
Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features
Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs
This is a three pole fusible heavy duty safety switch that is rated at 800A with voltage of 240 VAC and 250 VDC
It is rated when using time delay fuses of 250 HP at 240 VAC three phase and 50 HP at 250 VDC
This switch has a 4 wire configuration and is rated for AWG 3/0 to 750 kcmil aluminum and copper wire
This device has enclosure rating of NEMA 1 and it is made of steel
It has a height of 69.13 in, width of 36.62 in and has a depth of 17.75 in
This switch has factory installed neutral
It is UL listed with the file E2875.
