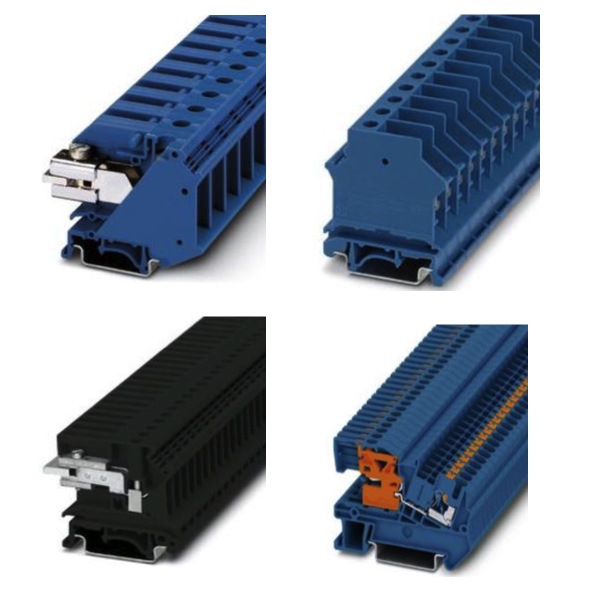

Neutral Disconnect Terminal Blocks
Neutral disconnect terminal blocks manage the neutral conductors in electrical systems. These blocks provide a safe and organized way to route and isolate circuits—and often include an integral disconnect feature that lets technicians separate the connections without removing any wiring. By placing the neutral busbar directly inside the terminal block, the design ensures reliable distribution of the neutral point across several circuits—and also makes the circuits quite visible and accessible.
The neutrality of disconnect terminal blocks, which includes neutral disconnect terminals, comes from the variety of connection technologies available. Connection options such as screw connection, push in connection, or even tension clamp connection allow for secure handling of different conductor types and sizes, with feed through versions also available for seamless integration into terminal strips. Their ability to handle a wide cross section range ensures compatibility with many wiring requirements, while their mounting type versatility allows easy installation on DIN rails or panel structures. These features make them well suited for industrial control panels, distribution systems, and building installations.
More Information about Neutral Disconnect Terminal Blocks
Neutral disconnect terminal blocks have several advantages, but a few key ones stand out. For one, they make it easy to facilitate testing and maintenance. Many models include test disconnect points or integrated test slots, which let you take measurements quickly and accurately without having to disturb the whole circuit. The upshot is that these blocks give you a safe way to test connections and a clear way to see if something's gone wrong without making an even bigger mess of the circuit. Neutral disconnect terminal blocks also combine reliability and flexibility, which is to say that they work well whether you're just in daily operation or if you have a situation that calls for long-term service.
FAQs
What is the rated cross section of wires used in neutral disconnect terminal blocks?
The rated cross section of wires used in neutral disconnect terminal blocks typically ranges from 0.5 mm² to 10 mm² (20 AWG to 8 AWG), depending on the specific design and manufacturer.
Terminal Block Basics
Single Level Pass Through Terminal Blocks are used to connect two wires together with a common junction point. This is helpful when a component needs to be disconnected or isolated within a circuit. These are the most common types of terminal blocks in industrial applications.
Ground Terminal Blocks function almost exactly like most pass through terminal blocks with one exception: they are grounded. These terminal blocks have a metal connection from where the wire is terminated, all the way to the bottom of the block where it will clamp into the panel. This allows for an electrical circuit to be grounded without running a wire to the main ground connection on a breaker or surge protector.
Fused Terminal Blocks function almost exactly like most pass through terminal blocks with one exception: the presence of a fuse. This fuse provides protection for components from too much voltage or current.
Multilevel Terminal Blocks are used to connect two wires together with a common junction point, just like single pass though terminal blocks, but with the advantage of making two electrical connections in the same block. These blocks also incorporate fuses and can be grounded.
Disconnect Terminal Blocks are similar to fused blocks, however the disconnect stops the flow of electricity by lifting a lever on the terminal block. Unlike fuse blocks, they are a more permanent solution, but will not provide any protection in the event of a power surge.
