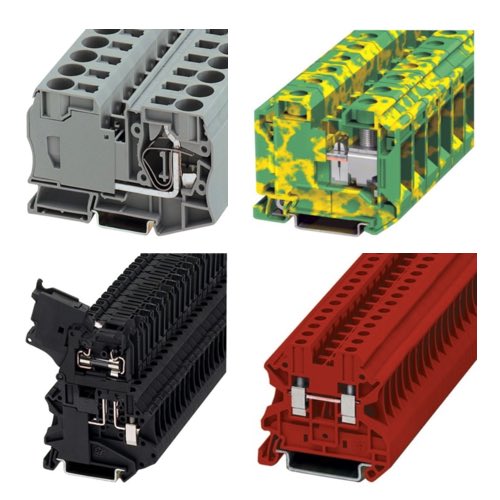

Eaton Terminal Blocks
Eaton terminal blocks are available as North American single row barrier strip terminal blocks, European style Eurostyle PCB terminal blocks, and edge connectors in screw, cage, spring, screwless, high current, plug-in, tiered, and header configurations for safe, organized wire-to-board and wire-to-wire connectivity in industrial control panels, automation systems, and PCB applications.
Eaton terminal blocks provide secure and organized electrical connections in industrial control panels and automation systems. The single row terminal block range includes barrier strip models A0, A1, A2, A3, A4, A38, CB0, CB1, CB2, CB3, CB4, B38, and LP series for North American wiring applications, along with C220x feed-through junction blocks for modular circuit distribution. Eurostyle PCB terminal blocks are available in cage and screw, spring and screw, screwless, high current, plug, header, and tiered configurations for wire-to-board connectivity in European-style control and automation applications. Edge connectors, including the 1384X and 15104 series, provide direct board-level connectivity for panel and enclosure wiring interfaces.
Eaton terminal blocks support current ratings from approximately 10A to 125A and voltage ratings from 300V to 1000V, depending on the model and application. Many Eaton IEC terminal blocks are modular and DIN rail-mounted, allowing flexible configuration based on circuit requirements with compatibility across most standard DIN rail systems and accessories. Eaton terminal blocks meet IEC and UL standards and support customized configurations, including special markings, mixed termination types, alternate pole arrangements, and application-specific layouts for demanding control panel builds.
FAQs
Q: What types of Eaton terminal blocks are available?
Eaton offers North American single row barrier strip terminal blocks, Eurostyle PCB terminal blocks in screw, cage, spring, screwless, high current, plug-in, tiered, and header styles, and edge connectors for wire-to-board and wire-to-wire connectivity in control panel and PCB applications.
Q: What are IEC terminal blocks and how do Eaton terminal blocks meet this standard?
IEC terminal blocks are designed to meet International Electrotechnical Commission standards for compatibility, safety, and performance in global industrial applications. Eaton IEC terminal blocks meet IEC and UL standards, ensuring compatibility with most standard DIN rail systems and accessories from other manufacturers.
Q: What are the current and voltage ratings of Eaton terminal blocks?
Most Eaton terminal blocks support current ratings from approximately 10A to 125A and voltage ratings from 300V to 1000V depending on the model, connection technology, and application requirements.
Q: Can Eaton terminal blocks be customized for specific panel applications?
Yes. Eaton supports customized terminal block configurations including special markings, mixed termination types, alternate pole arrangements, and application-specific layouts for unique control panel and automation system designs.
Q: Are Eaton terminal blocks compatible with standard DIN rail systems?
Yes. Eaton IEC terminal blocks are designed to meet IEC and UL standards, making them compatible with most standard DIN rail systems and accessories from other manufacturers in industrial control panel applications.
