Schneider Electric LV426803 undervoltage release (spring) MN - 110...130 V AC 50/60Hz - 125 V DC
Normally In Stock
Code: 92544
Schneider LV426803 Voltage release 110-130 V AC 50/60 Hz, 125 V DC Clip-on Control MN Compliant, EU RoHS Declaration China RoHS declaration, Product out of China RoHS scope. Substance declaration for your information. Molded Case Circuit Breakers PowerPact B-Frame Molded Case Cir
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$681.13
Sale Price
$567.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider LV426803 Voltage release 110-130 V AC 50/60 Hz, 125 V DC Clip-on Control MN Compliant, EU RoHS Declaration China RoHS declaration, Product out of China RoHS scope. Substance declaration for your information. Molded Case Circuit Breakers PowerPact B-Frame Molded Case Cir
Specifications
Breaker Voltage Rating
125 VDC
Manufacturer
Square D
Component
Undervoltage Release
Breaker Mount Type
Clip-On
Breaker Voltage Rating
110-130 VAC
Features

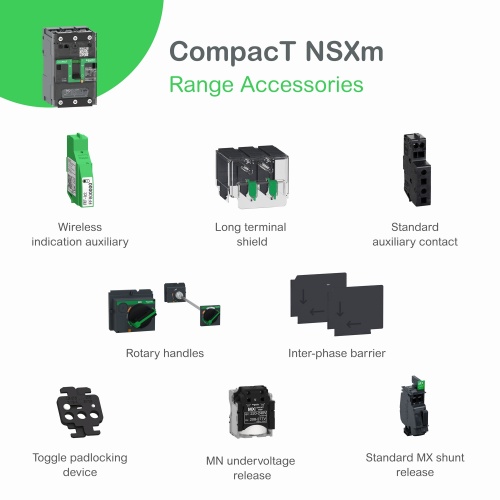

This standard MN undervoltage release is used on Compact NSXm and PowerPact B devices
This auxiliary is used for emergency off or failsafe remote tripping applications
It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device
This MN auxiliary has a 110/130 VAC 50/60 Hz or 125 VDC rated voltage
It trips the circuit breaker when the control voltage drops below 35% of its rated value
It complies with IEC 60947-2 standard
Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
