Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

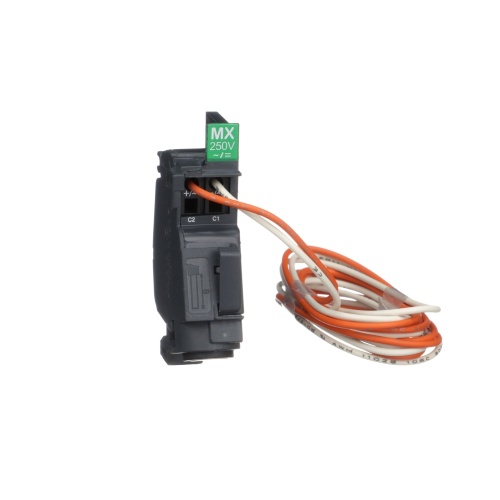

Schneider Electric LV426864 shunt trip (pre-wired) MX-208...240V AC 60Hz-220…240V AC 50Hz-277V~ 60Hz-250V DC
Normally In Stock
Code: 92537
Schneider LV426864 Voltage release 277 V AC 60 Hz, 250 V DC, 220-240 V AC 50 Hz, 208-240 V AC 60 Hz Clip-on Control MX Compliant, EU RoHS Declaration China RoHS declaration, Product out of China RoHS scope. Substance declaration for your information. Molded Case Circuit Breakers
Condition: New
CALL FOR LEAD TIME$678.55
Sale Price
$565.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider LV426864 Voltage release 277 V AC 60 Hz, 250 V DC, 220-240 V AC 50 Hz, 208-240 V AC 60 Hz Clip-on Control MX Compliant, EU RoHS Declaration China RoHS declaration, Product out of China RoHS scope. Substance declaration for your information. Molded Case Circuit Breakers
Specifications
Breaker Voltage Rating
277 VAC
Breaker Voltage Rating
250 VDC
Breaker Voltage Rating
220-240 VAC
Manufacturer
Square D
Component
Shunt Trip
Breaker Mount Type
Clip-On
Breaker Voltage Rating
208-240 VAC
Features
This pre-wired MX shunt trip is used on Compact NSXm and PowerPact B devices
This auxiliary is used for emergency off or failsafe remote opening applications
It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device
This MX auxiliary has a 220/240VAC 50Hz, 208/240/277VAC 60Hz or 250VDC rated voltage
It trips the circuit breaker when the control voltage rises above 70% of its rated value
It complies with IEC 60947-2 standard
Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
