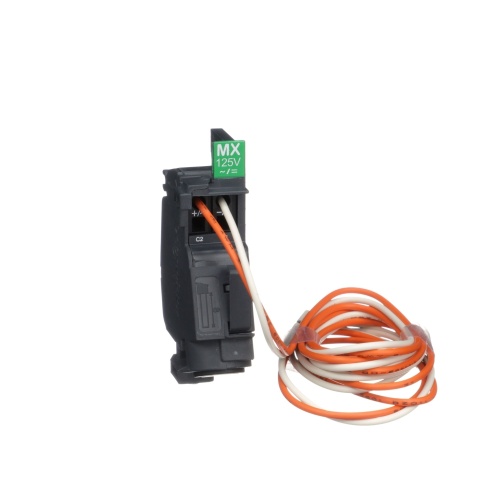

Schneider Electric LV426863 shunt trip (pre-wired) MX - 110...130 V AC 50/60Hz - 125 V DC
Normally In Stock
Code: 92518
Schneider LV426863 Voltage release 110-130 V AC 50/60 Hz, 125 V DC Clip-on Control MX Compliant, EU RoHS Declaration China RoHS declaration, Product out of China RoHS scope. Substance declaration for your information. Molded Case Circuit Breakers PowerPact B-Frame Molded Case Cir
Condition: New
Normally Stocked$815.94
Sale Price
$679.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider LV426863 Voltage release 110-130 V AC 50/60 Hz, 125 V DC Clip-on Control MX Compliant, EU RoHS Declaration China RoHS declaration, Product out of China RoHS scope. Substance declaration for your information. Molded Case Circuit Breakers PowerPact B-Frame Molded Case Cir
Specifications
Breaker Voltage Rating
125 VDC
Manufacturer
Square D
Component
Shunt Trip
Breaker Mount Type
Clip-On
Breaker Voltage Rating
110-130 VAC
Features
This pre-wired MX shunt trip is used on Compact NSXm and PowerPact B devices
This auxiliary is used for emergency off or failsafe remote opening applications
It is a one click spring type auxiliary for quick and easy installation, visible from the front face of the device
This MX auxiliary has a 110/130 VAC 50/60Hz or 125VDC rated voltage
It trips the circuit breaker when the control voltage rises above 70% of its rated value
It complies with IEC 60947-2 standard
Compact NSXm and PowerPact B embed either 1 MN or 1 MX coil.
