Schneider Electric LV426912 Long terminal shield - insulation Accessories for 3P
Normally In Stock
Code: 92513
Schneider LV426912 Long terminal shield 16-160 A Insulation Accessories 3P Upstream, Downstream Long terminal shield Set of 1 Insulation accessories Pro-active compliance (Product out of EU RoHS legal scope, EU RoHS Declaration China RoHS declaration, Pro-active China RoHS declar
Condition: New
Normally Stocked*NON-CANCELLABLE, NON-RETURNABLE*
$207.64
Sale Price
$173.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider LV426912 Long terminal shield 16-160 A Insulation Accessories 3P Upstream, Downstream Long terminal shield Set of 1 Insulation accessories Pro-active compliance (Product out of EU RoHS legal scope, EU RoHS Declaration China RoHS declaration, Pro-active China RoHS declar
Specifications
Manufacturer
Square D
Component
Terminal Shield
Breaker Amperage Rating
16-160 Amp
Breaker Number of Poles
3 Pole
Features

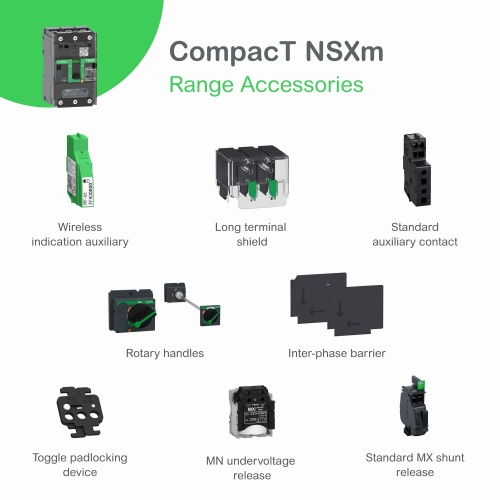

It is a long terminal shield for 3 poles Compact NSXm and PowerPact B devices
It is designed for protection against direct contact with power circuit,The long terminal shield is used for connection with cables or insulated bares
It can be mounted upstream and downstream the circuit breaker
This part provides IP 40 degree of protection and IK 07 mechanical impact protection
It can be mounted after the product installation and can be removed and put in place even if there are auxiliary wires.
