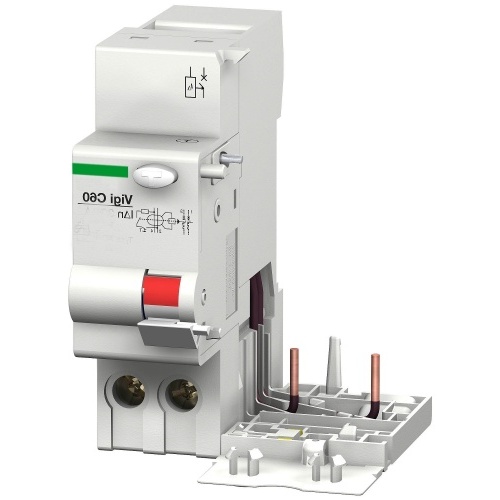

Schneider Electric M9V31263 Multi 9 - Vigi C60 - 2P - 63A - class A SI - 230/400 V - 30mA
Normally In Stock
Code: 90331
Schneider M9V31263 63 A EN/IEC 61009-1 2P Add-on residual current devices Vigi C60 EN/IEC 61009-1, EN/IEC 61009-2-1 Tunnel type terminal bottom 0.00-0.05 in² (1-35 mm² - rigid, Tunnel type terminal bottom 0.00-0.04 in² (1-25 mm² - flexible, Tunnel type termin
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$735.41
Sale Price
$612.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Multi 9 - Vigi C60 - 2P - 63A - class A SI - 230/400 V - 30mA
Specifications
Breaker Number of Poles
Two Pole
Breaker Voltage Rating
240 VAC
Breaker Voltage Rating
230 VAC
Component
Miniature Circuit Breaker
Manufacturer
Schneider Electric
Manufacturer
Square D
Features
This Vigi C60 is a modular add-on residual current devices
It is a 2P and rated current is 63A
The earth leakage protection class is A-SI type with a sensitivity of 30mA and a voltage independent technology
This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards
The A-SI type provides increased immunity from electrical interference and polluted or corrosive environments
This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard
The Ue rated operational voltage is 230VAC or 240VAC
The Ui rated insulation voltage is 500VAC
The Uimp rated impulse withstand voltage is 4kV
The pollution degree is 3
It can be mounted on DIN rail
The width in 9mm pitches is 4
The product color is light grey (RAL7035)
The dimensions are (W) 36mm x (H) 87mm x (D) 74mm
The weight is 150g
The degree of protection is IP20 and IP40 in an enclosure
The operating temperature is -25°C to 60°C
The storage temperature is -40°C to 60°C.
