Code: 867385

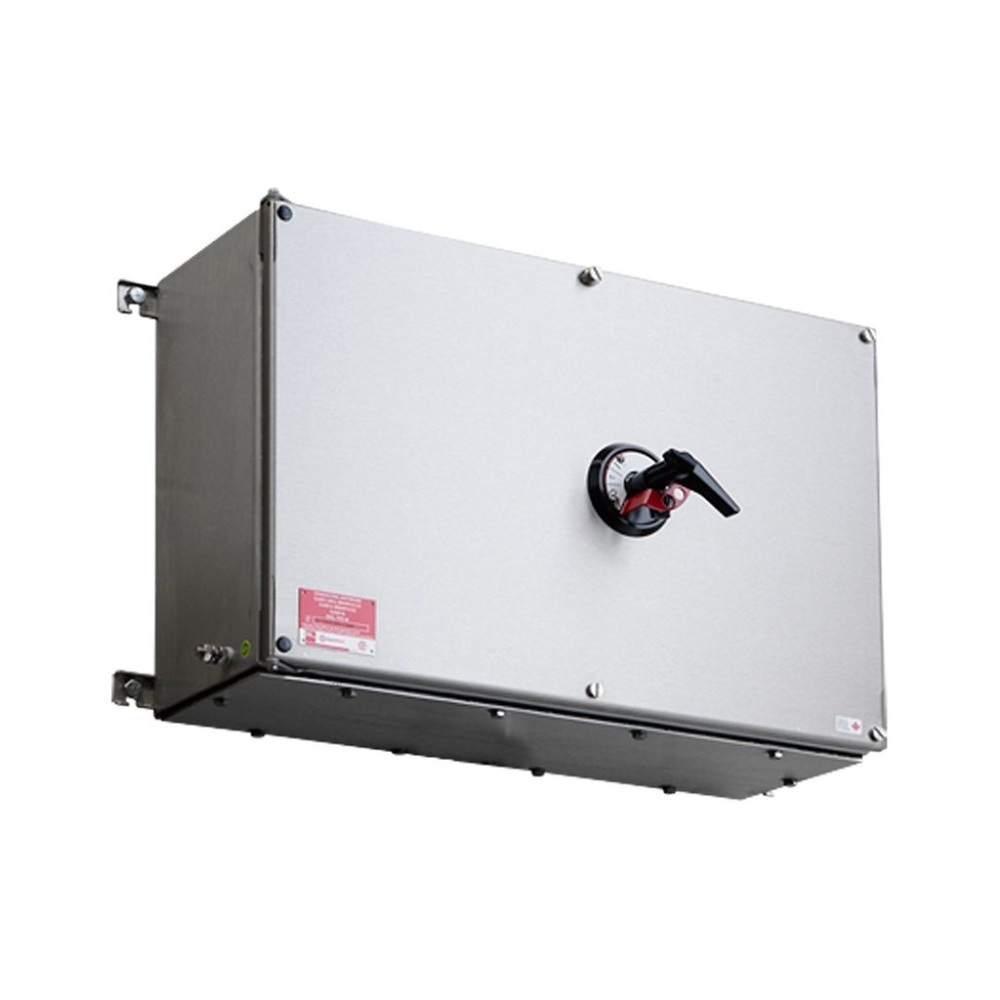

Appleton™ RFESSS30602 RFESSS30602-DV-EXT-NP
Normally In Stock
Appleton™ RFESSS30602 RFESSS30602-DV-EXT-NP
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM SOLA FOR PRODUCT TO SHIP
$15106.88
Sale Price
$12589.07
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Appleton™ RFESSS30602 RFESSS30602-DV-EXT-NP
Specifications
Component
Disconnect Switch
Manufacturer
Appleton
Features
Factory sealed
no external conduit or cable seals required making installations faster, easier, and less costly
Features ground-breaking design that incorporates the use of a disconnect switch housing to minimize the downtime and costs associated with servicing in hazardous locations
Standard, off-the-shelf breakers are used and the lighter weight enclosures can be quickly opened in the field for easier servicing.
Standard configuration includes external actuator and a non-window door. Factory installed options include window door, internal actuator or alternate enclosure sizes and orientations
Enclosure can be easily field punched for cable glands or conduit hubs. Optional gland plates available and must be ordered with the enclosure for factory installation
Circuit breaker available in 3-pole up to 100 Amp range
Breaker can be padlocked in either the ON or OFF position
Voltage ranges from 120 to 600 volts
Ground terminal bar provided
External ground lug provided
Accommodates standard Cutler-Hammer F-Frame Series circuit breaker individually contained in its own housing
