Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 846231

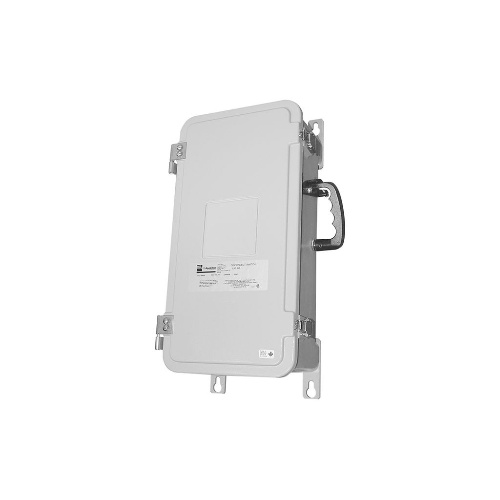

Appleton™ WD2S6034AUX DISCONNECT SWITCH. DIV.2 60A
Normally In Stock
Appleton™ WD2S6034AUX DISCONNECT SWITCH. DIV.2 60A
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM SOLA FOR PRODUCT TO SHIP
$8893.24
Sale Price
$7411.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Appleton™ WD2S6034AUX DISCONNECT SWITCH. DIV.2 60A
Specifications
Component
Disconnect Switch
Manufacturer
Appleton
Features
Factory sealed, no external seals required
100 Amp models and smaller are suitable for use with DC voltages (250 Vdc Max) as well as AC voltages
All models are suitable for use with AC voltages to 600 Vac max
Short circuit withstand rated to 10,000 RMS symmetrical amperes (unfused)
Removable hinged cover allows for ease of installation and maintenance
Single top and bottom conduit entries supplied, drilled and tapped 1-1/4#8221, NPT
Key-hole mounting feet for easy installation
Unit is equipped with defeatable door interlock which allows emergency access when switch is energized
Cover can be padlocked closed
Ergonomically designed rugged cast aluminum handle
Operating handle can be locked in the OFF position with provision to lock in the ON position
