Code: 840988

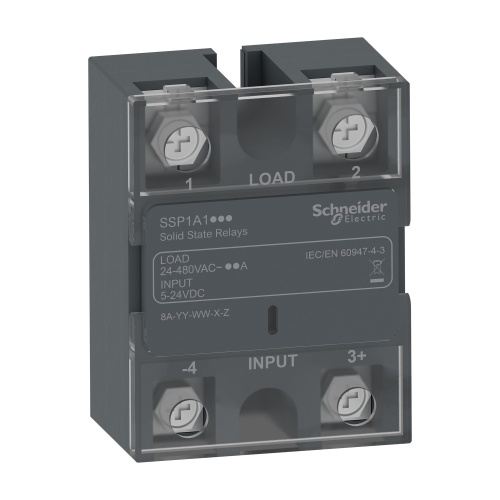

Schneider Electric SSP1A190BDE solid state relay, Easy Harmony Solid State Relays, input 5
Normally In Stock
Schneider Electric SSP1A190BDE solid state relay, Easy Harmony Solid State Relays, input 5
Condition: New
Usually ships Same Day or Next Day$64.87
Sale Price
$54.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
solid state relay, Easy Harmony Solid State Relays, input 5 to 24V DC, output 24 to 480V AC, 90A, Zero cross switching
Specifications
Relay Connection Type
Screw Connection
Relay Mounting
Panel
Relay Switching
Zero Voltage Switching
Relay Poles
Single Pole
Component
Relay Module-Solid State
Manufacturer
Schneider Electric
Relay Throws
Single Throw Normally Open
Coil Voltage Rating
3 Volt
Relay Load Voltage AC Rating
300 Volt
Coil Voltage Max
32 Volt
Relay Load Amperage
75 Amp @ 300 Volt
Relay Load Voltage AC Phase
Single Phase
Features
Rated current including 10A,25A,50A,75A,90A,125A

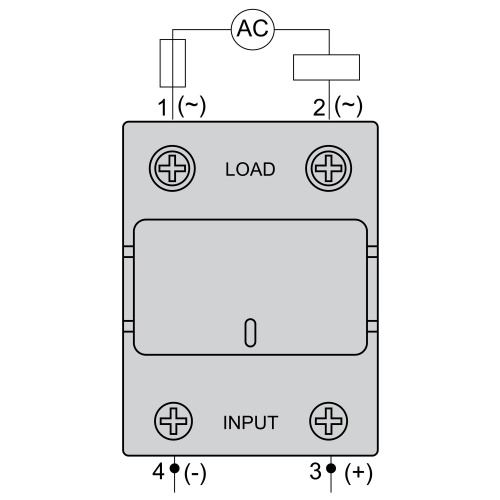

It is with DC input and AC output
This product works at a rated voltage range from 5 to 24V DC and an operating voltage range from 4 to 32V DC. Load voltage works from 24 to 300V AC

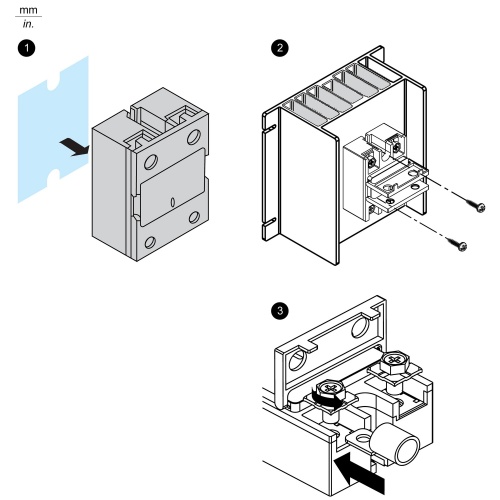

Designed for panel mounting by 2 fastener screws
It has an IP20 degree of protection
Enhanced insulation performance with higher Uimp
Lower leakage current ensures higher reliability
UL, CE, TUV, CSA certification workable for most markets
