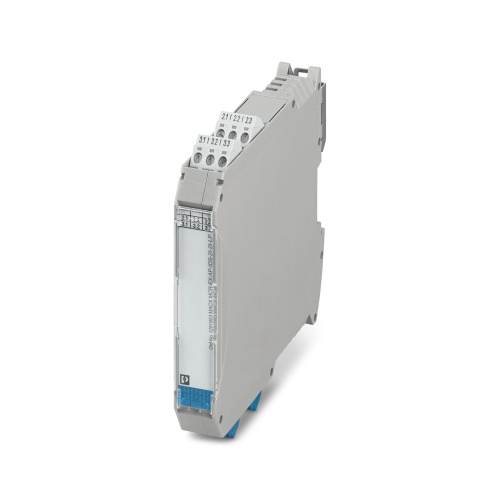

Phoenix Contact 1291963 Output signal conditioner MACX MCR-EX-AP-IDS-2I-2I-LP
Normally In Stock
Code: 738379
Phoenix Contact MACX MCR-EX-AP-IDS-2I-2I-LP - Output signal conditioner - 1291963
Condition: New
Usually ships Same Day or Next Day$316.20
Sale Price
$263.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1291963 An ex-i-Output isolator is designed to isolate and transmit low current signals in potentially explosive areas while maintaining intrinsic safety. It is compatible with fire and gas detectors and features a standard configuration with screw connections, offering four-way isolation and a loop-powered design. Additionally, the device meets specific SIL (Safety Integrity Level) requirements of IEC 61508 level 3, allowing for reliable operation in hazardous environments, with the option to configure up to 2 channels and a no-load voltage of 25V.
Specifications
Manufacturer
Phoenix Contact
Component
Signal Conditioner
Features
Reliable and safe signal isolation, conditioning, filtering, and amplifying with our signal conditioners and measuring transducers for explosion protection
Safer and more space-saving than ever: Ex i and SIL 3 with an overall width of just 6.2 mm with highly compact signal conditioners and measuring transducers
Maximum explosion protection for all Ex zones and gas groups with one- and two-channel Ex i signal conditioners and measuring transducers
High operational safety with signal conditioners, all of which have SIL certification
Integrate analog signals easily into the safety chain in accordance with the Machinery Directive with signal conditioners with performance level
Downloads
097292642_00_BVSATEX_BVS21ATEXE032X.pdf097293088_00_IECEx_IECExBVS210034X.pdf097293244_00_ExidaAS_2205-248R031V1R0.pdfcoc document.pdfeu declaration of conformity.stpproduct drawing.dxfproduct drawing.pdfpxc_1291963_00_00_MACX-MCR-EX-AP-IDS-2I-2I-LP_2D.dxf.crdownloadsimplified 3d model of the item.stpSpecification Sheet.pdf
