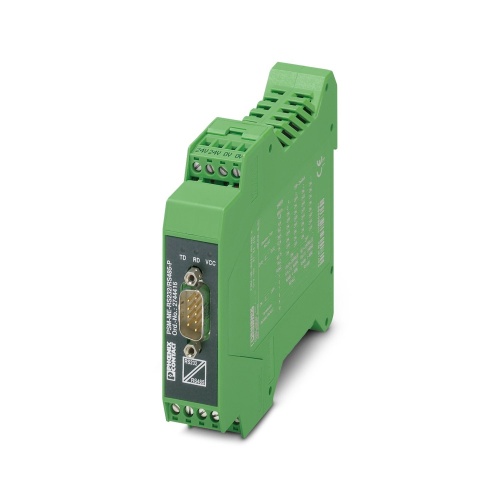

Phoenix Contact 2744416 Interface converter PSM-ME-RS232/RS485-P
Normally In Stock
Code: 72635
PSM-ME-RS232/RS485-P Phoenix 2744416 V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1,RS-422 interface in acc. with ITU-T V.11, EIA/TIA-422, DIN 66348-1,RS-485 interface in acc. with EIA/TIA-485, DIN 66259-1 D-SUB 9 plug,Pluggable screw connection PA 6.6-FR Interface converter Interface converter *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$582.01
Sale Price
$485.01
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

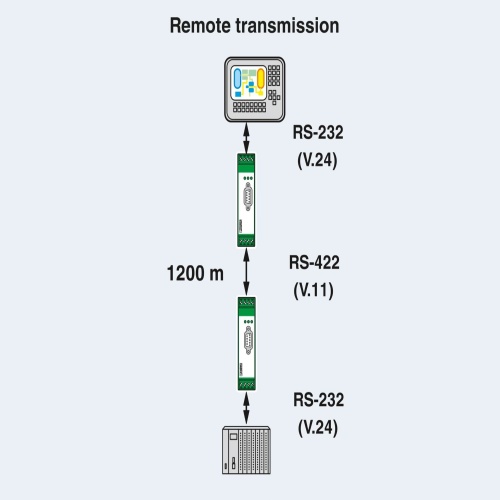

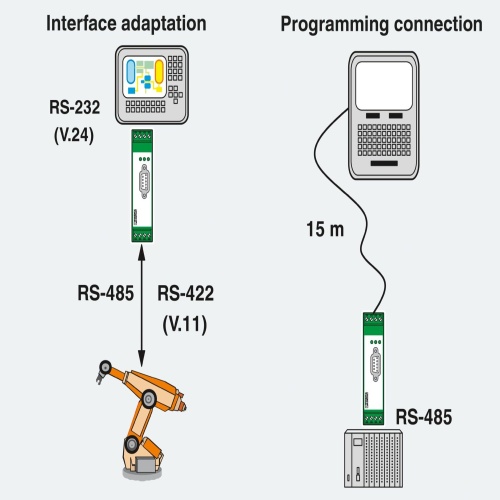

Phoenix Contact 2744416 An interface converter that enables conversion between RS-232 (V.24) and RS-422 (V.11), as well as compatibility with RS-485, while providing electrical isolation and supporting two channels and a rugged, rail-mountable design.
Specifications
Communication Interface
EIA-TIA-232
Communication Interface
DIN 66259-1
Communication Interface
RS-422 Interface In Acc. With ITU-T V.11
Communication Interface
EIA-TIA-422
Communication Interface
DIN 66348-1
Communication Transmission Length
15 M (Shielded Twisted Pair)
Communication Interface
DIN 66259-1
Component
Interface Converter
Manufacturer
Phoenix Contact
Communication Interface
V.24 (RS-232) Interface In Acc. With ITU-T V.28
Communication Connection Method
D-SUB 9 Plugpluggable Screw Connection
Communication Interface
RS-485 Interface In Acc. With EIA-TIA-485
Features
RS-422 4-wire point-to-point operation
Transmission speed of 4.8 Kbps ... 115.2 Kbps
High-quality 3-way isolation between power supply, RS-232, and RS-422/RS-485 for safe decoupling of potentials with 2 kV
Mounting on standard EN DIN rails

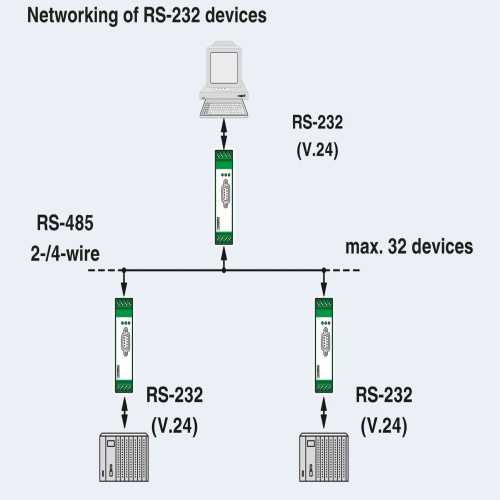

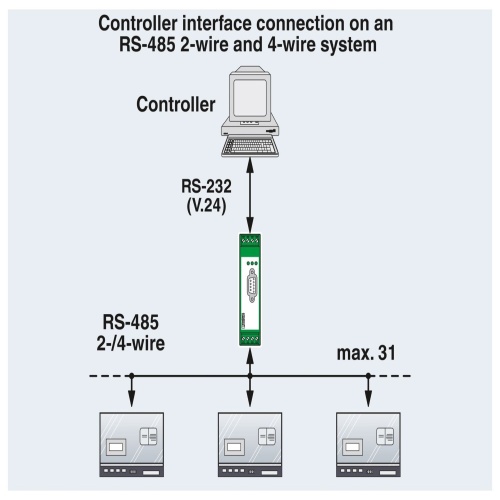

RS-485 2-wire operation, half duplex
RS-485 4-wire operation, full duplex
Automatic RS-485 transmit/receive changeover
Integrated data indicator for dynamic indication of transmit and receive data
Integrated surge protection with transient discharge to the DIN rail
Shipbuilding approval in accordance with DNV GL
