Phoenix Contact 2924029 Power/input signal conditioner MACX MCR-EX-SL-RPSSI-I-UP-SP
Normally In Stock
Code: 72401
MACX MCR-EX-SL-RPSSI-I-UP-SP MACX MCR-EX-SL-RPSSI-I-UP-SP Phoenix Contact 2924029 Repeater power supply operation Power/input isolating amplifier
Condition: New
Usually ships within 7-14 days. Call for ship time.$547.28
Sale Price
$456.07
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

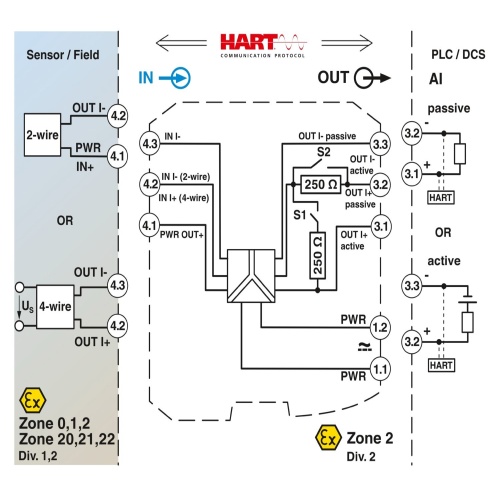

Phoenix Contact 2924029 A repeater power supply and input signal conditioner that is HART-transparent transmits supplied or active 0/4…20mA signals from the Ex area to a load in the safe area, offering SIL 2 (1oo1)/SIL 3 (1oo2) wide-range supply capabilities.
Specifications
Manufacturer
Phoenix Contact
Conditioner Output Signal Range
0 mA - 20 mA
Conditioner Output Signal Range
4 mA - 20 mA
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Number of Channels
1
Conditioner Output Signal Type
Voltage
Conditioner Connection Type
Push-in connection
Component
Repeater
Conditioner Supply Voltage
24 VAC-DC - 230 VAC-DC
Conditioner Output Signal Range
0 Volt - 5 Volt
Conditioner Output Signal Range
1 Volt - 5 Volt
Features
Wide-range power supply of 19.2 ... 253 V AC/DC
Up to SIL 2 in accordance with EN 61508
Installation in zone 2, protection type "n" (EN 60079-15) permitted
250 Ω resistor that can be activated via DIP switches to increase HART impedance for low-resistance systems
3-way electrical isolation
Plug-in screw or spring-cage connection technology (Push-in technology), with integrated sockets for HART communicators
0/4 ... 20 mA input, [Ex ia] IIC (powered or not powered)

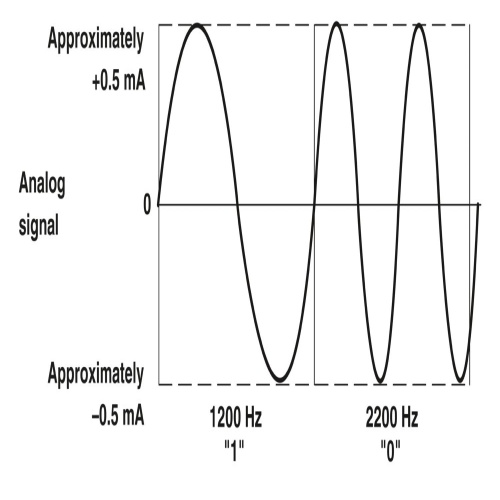

Bidirectional transmission of digital HART communication signals
0/4 ... 20 mA output (active or passive), 0/1 ... 5 V, can be selected via DIP switches
Downloads
Phoenix 2924029 Application Note English.pdfPhoenix 2924029 CAD data International.dxfPhoenix 2924029 CAD data International.pdfPhoenix 2924029 CAD data International.stpPhoenix 2924029 Certification English.pdfPhoenix 2924029 Certification International.pdfPhoenix 2924029 Data Sheet English.pdfPhoenix 2924029 Manual English.pdfPhoenix 2924029 Manufacturers declaration English.pdfPhoenix 2924029 Manufacturer's declaration English.pdfPhoenix 2924029 Manufacturers declaration International.pdfPhoenix 2924029 Manufacturer's declaration International.pdfPhoenix 2924029 Package Slip International.pdfPhoenix 2924029 Tender Text English.zip
