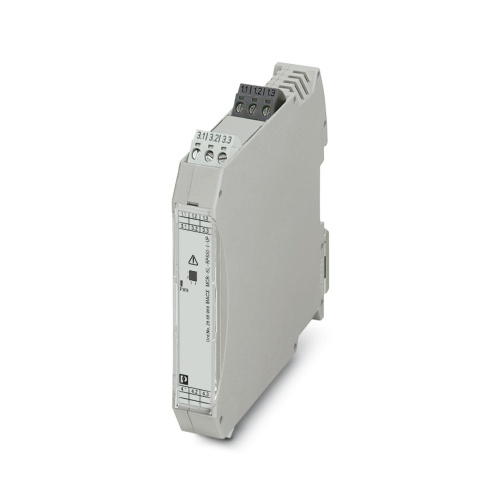

Phoenix Contact 2865968 Repeater power supply MACX MCR-SL-RPSSI-I-UP
Normally In Stock
Code: 72388
MACX MCR-SL-RPSSI-I-UP MACX MCR-SL-RPSSI-I-UP Phoenix Contact 2865968 Repeater power supply operation Repeater power supply
Condition: New
Usually ships Same Day or Next Day$493.79
Sale Price
$411.49
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2865968 A repeater power supply is designed to provide a reliable source of power for 2- and 4-conductor transmitters, offering Hart transparency and a broad range of power supply options. It features SIL 2 (1oo1) and SIL 3 (1oo2) compliance, ensuring high levels of safety and reliability. The power supply also has a screw connection, providing easy installation and maintenance.
Specifications
Conditioner Connection Type
Screw Connection
Manufacturer
Phoenix Contact
Conditioner Output Signal Range
0 Ma - 20 Ma
Conditioner Output Signal Range
4 Ma - 20 Ma
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Number of Channels
1
Conditioner Output Signal Type
Voltage
Component
Repeater
Conditioner Supply Voltage
24 VAC-DC - 230 VAC-DC
Conditioner Output Signal Range
0 Volt - 5 Volt
Conditioner Output Signal Range
1 Volt - 5 Volt
Features
Wide-range power supply of 19.2 ... 253 V AC/DC
Up to SIL 2 in accordance with EN 61508
Installation in zone 2, protection type "n" (EN 60079-15) permitted
250 Ω resistor that can be activated via DIP switches to increase HART impedance for low-resistance systems
3-way electrical isolation
Plug-in screw or spring-cage connection technology (Push-in technology), with integrated sockets for HART communicators

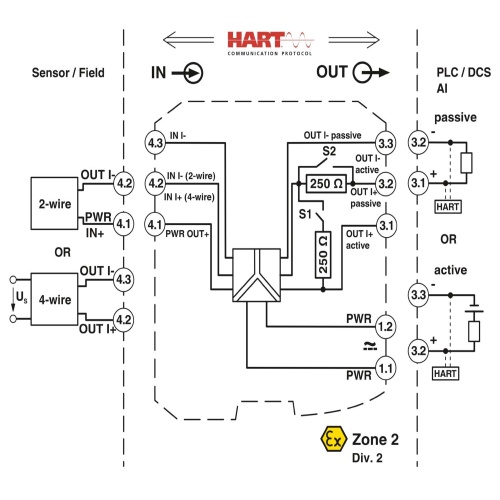

Input: 0/4 mA ... 20 mA (powered or not powered)

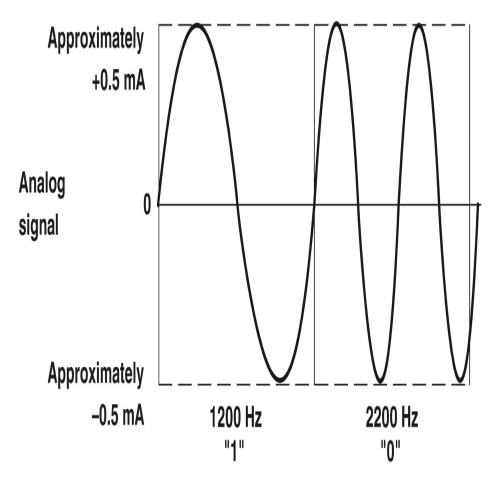

Bidirectional transmission of digital HART communication signals
0/4 ... 20 mA output (active or passive), 0/1 ... 5 V, can be selected via DIP switches
Downloads
Phoenix 2865968 Application Note English.pdfPhoenix 2865968 CAD data International.dxfPhoenix 2865968 CAD data International.pdfPhoenix 2865968 CAD data International.stpPhoenix 2865968 Certification International.pdfPhoenix 2865968 Data Sheet English.pdfPhoenix 2865968 Manual English.pdfPhoenix 2865968 Manufacturers declaration English.pdfPhoenix 2865968 Manufacturers declaration International.pdfPhoenix 2865968 Package Slip International.pdfPhoenix 2865968 Software International.xlsPhoenix 2865968 Tender Text English.zip
