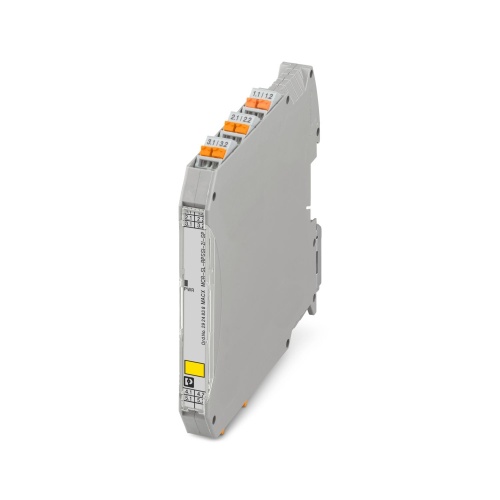

Phoenix Contact 2924838 Repeater power supply MACX MCR-SL-RPSSI-2I-SP
Normally In Stock
Code: 72387
MACX MCR-SL-RPSSI-2I-SP MACX MCR-SL-RPSSI-2I-SP Phoenix Contact 2924838 Repeater power supply operation Repeater power supply
Condition: New
Usually ships Same Day or Next Day$595.96
Sale Price
$496.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

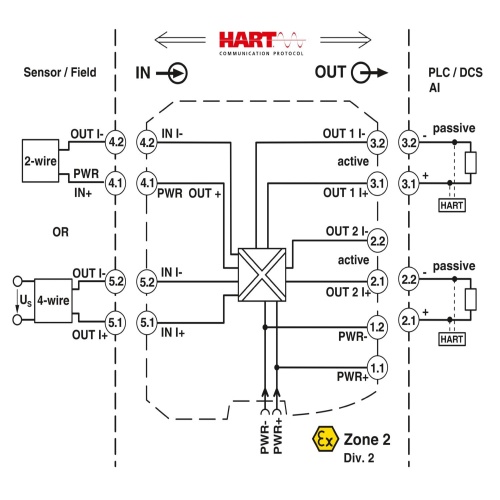

Phoenix Contact 2924838 A transducer repeater with power supply and input signal conditioner can transmit electrically isolated signals from a field to two loads, supporting signals of up to 20 mA. The device comes in various configurations, including one channel and HART transparency, offering three-way isolation for enhanced safety. It also meets international standards such as SIL and ISO 13849 with levels of SIL 2 and Performance Level d/KAT 2, while maintaining a systematic capability of 3, allowing for push-in connections to facilitate easy installation.
Specifications
Manufacturer
Phoenix Contact
Conditioner Supply Voltage
24 VDC
Conditioner Output Signal Range
0 Ma - 20 Ma
Conditioner Output Signal Range
4 Ma - 20 Ma
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Number of Channels
1
Conditioner Connection Type
Push-In Connection
Component
Repeater
Features
Two electrically isolated 0/4 mA ... 20 mA (active) outputs
Up to SIL 2 in accordance with EN 61508
Installation in zone 2, protection type "n" (EN 60079-15) permitted
Power supply possible via DIN rail connector

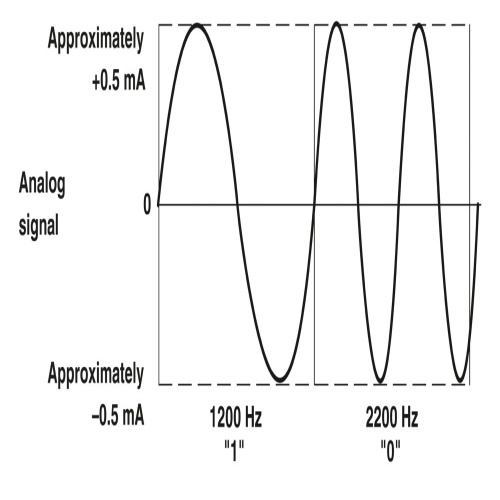

Bidirectional transmission of digital HART communication signals (both outputs)
Plug-in screw or spring-cage connection technology (Push-in technology), with integrated sockets for HART communicators
Input: 0/4 mA ... 20 mA (powered or not powered)
4-way electrical isolation
Downloads
Phoenix 2924838 Application Note English.pdfPhoenix 2924838 CAD data International.dxfPhoenix 2924838 CAD data International.pdfPhoenix 2924838 CAD data International.stpPhoenix 2924838 Certification International.pdfPhoenix 2924838 Data Sheet English.pdfPhoenix 2924838 Manual English.pdfPhoenix 2924838 Manufacturers declaration English.pdfPhoenix 2924838 Manufacturers declaration International-2.pdfPhoenix 2924838 Manufacturers declaration International-3.pdfPhoenix 2924838 Manufacturers declaration International.pdfPhoenix 2924838 Package Slip International.pdfPhoenix 2924838 Tender Text English.zip
