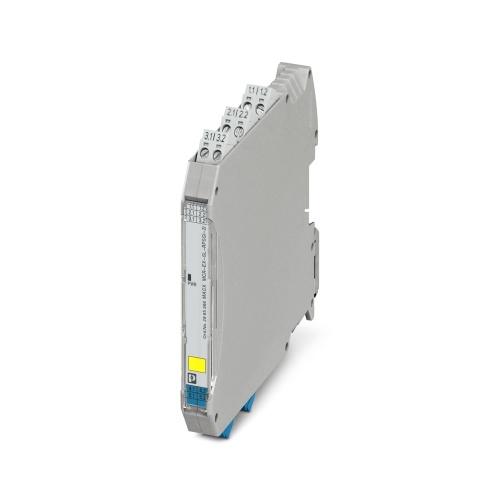

Phoenix Contact 2865366 Repeater power supply MACX MCR-EX-SL-RPSSI-2I
Normally In Stock
Code: 72382
MACX MCR-EX-SL-RPSSI-2I MACX MCR-EX-SL-RPSSI-2I Phoenix Contact 2865366 Repeater power supply operation Repeater power supply
Condition: New
Usually ships within 7-14 days. Call for ship time.$656.83
Sale Price
$547.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

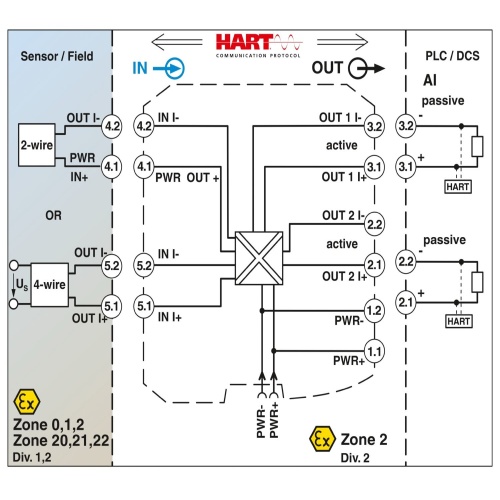

Phoenix Contact 2865366 A repeater transmits power supply and input signal conditioned signals from the Ex area to two loads in the safe area. It has one channel, is HART-transparent, and features a standard configuration with three-way isolation. The system operates at SIL level 2 and ISO 13849 performance level d/KAT 2, boasts systematic capability level 3, and uses screw connections for easy installation.
Specifications
Conditioner Connection Type
Screw Connection
Manufacturer
Phoenix Contact
Conditioner Supply Voltage
24 VDC
Conditioner Output Signal Range
0 Ma - 20 Ma
Conditioner Output Signal Range
4 Ma - 20 Ma
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Number of Channels
1
Component
Repeater
Features

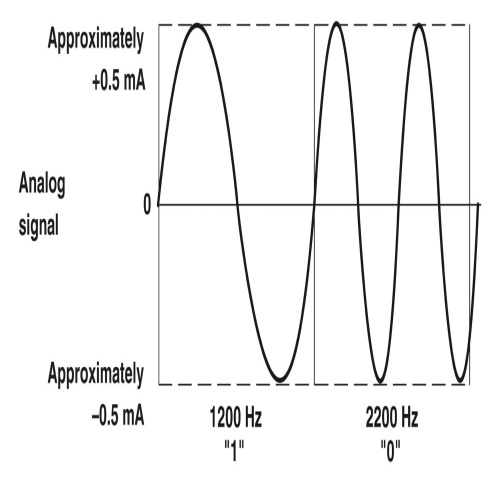

Bidirectional HART transmission (both outputs)
Measuring transducer supply voltage > 16 V
Two electrically isolated 0/4 mA ... 20 mA (active) outputs
0/4 mA ... 20 mA input, intrinsically safe, [Ex ia], powered and not powered
Error indication according to NAMUR NE 43
SIL 2 according to IEC/EN 61508
Safe electrical isolation between input, outputs, and supply
Power supply possible via DIN rail connector
Installation in zone 2 permitted
Plug-in connection terminal blocks, screw connection technology, with integrated sockets for HART communicators

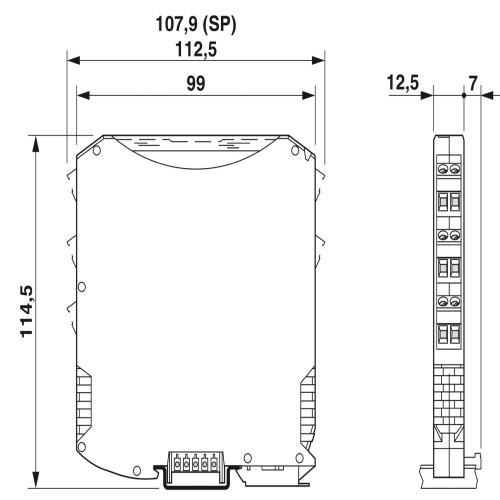

Housing width: 12.5 mm
Minimal power dissipation
High transmission accuracy
Downloads
Phoenix 2865366 Application Note English.pdfPhoenix 2865366 CAD data International.dxfPhoenix 2865366 CAD data International.pdfPhoenix 2865366 CAD data International.stpPhoenix 2865366 Certification English.pdfPhoenix 2865366 Certification International.pdfPhoenix 2865366 Data Sheet English.pdfPhoenix 2865366 Manual English.pdfPhoenix 2865366 Manufacturer's declaration English.pdfPhoenix 2865366 Manufacturer's declaration International-2.pdfPhoenix 2865366 Manufacturer's declaration International.pdfPhoenix 2865366 Manufacturers declaration English.pdfPhoenix 2865366 Manufacturers declaration International-2.pdfPhoenix 2865366 Manufacturers declaration International.pdfPhoenix 2865366 Package Slip International.pdfPhoenix 2865366 Tender Text English.zip
