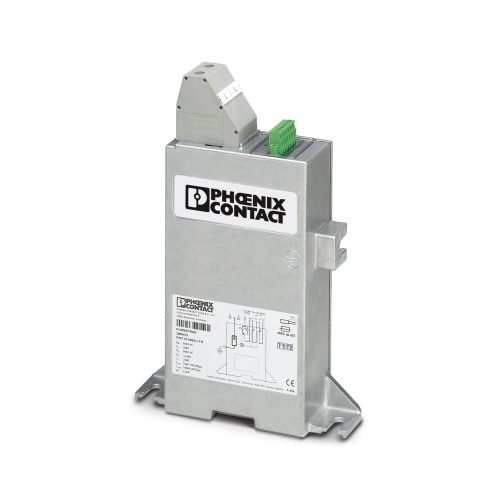

Phoenix Contact 2800419 Lightning/surge arrester type 1/2 PWT 35-800AC-FM
Normally In Stock
Code: 72149
PWT 35-800AC-FM Phoenix 2800419 Arrester combination 690 VAC Screw connection,Ring cable lug Lightning/surge arrester type 1/2 Surge Protection
Condition: New
Usually ships Same Day or Next Day$689.75
Sale Price
$574.79
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2800419 A lightning/surge arrester is typically classified as type 1 or type 2, depending on its voltage rating and design, and can be categorized as Class I or Class II, specifically for one-phase power supply networks where both the protective equipment (PE) and neutral (N) are installed within a single conductor (L1, PEN).
Specifications
Fault Warning
Optical
Arrester Class according to IEC
PV II
Arrester Class according to IEC
PV T2
Max Discharge Capacity
50 A
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
PV Arrester
Nominal Discharge Current
20 Ka
Surge Protector Line Voltage
690 Volt
Component
Surge Arrester
Features
Multi-stage status monitoring via remote indication contact
Universal solution for various network types
Function monitoring using optical status indicator
Use in harsh environments with robust design
Downloads
Phoenix 2800419 CAD data International.dxfPhoenix 2800419 CAD data International.pdfPhoenix 2800419 CAD data International.stpPhoenix 2800419 Flyer English.pdfPhoenix 2800419 Manufacturers declaration English.pdfPhoenix 2800419 Manufacturers declaration International.pdfPhoenix 2800419 Package Slip International.pdfPhoenix 2800419 Product Change Notification (PCN English.pdfPhoenix 2800419 Software International.zipPhoenix 2800419 Surge Protection English.pdfPhoenix 2800419 Tender Text English.zip
