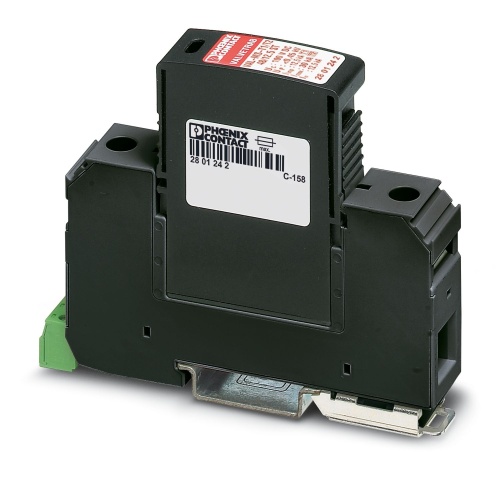

Phoenix Contact 2801240 Lightning/surge arrester type 1/2 VAL-MS-T1/T2 48/12.5/1+0-FM
Normally In Stock
Code: 72143
VAL-MS-T1/T2 48/12.5/1+0-FM Phoenix 2801240 Arrester combination 60 VAC ±10 % Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Lightning/surge arrester type 1/2 Surge Protection
Condition: New
Usually ships Same Day or Next Day$229.31
Sale Price
$191.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

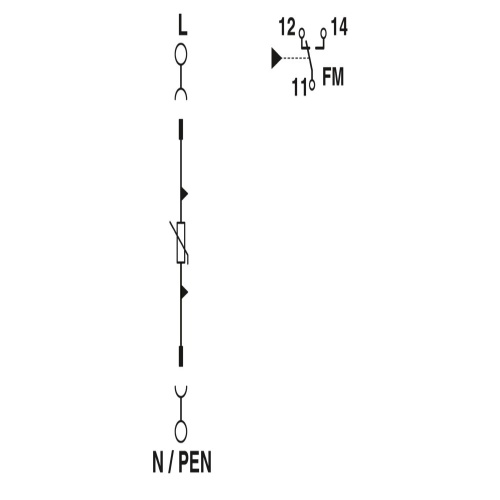

Phoenix Contact 2801240 A specialized device is designed for one-phase power supply networks that use a two-conductor system consisting of the live wire (L1) and the neutral and earth wires (N and PE), also known as a 2-conductor system. The device features a varistor-based plug-in lightning and surge arrester, providing protection against voltage surges. This device is equipped with remote indication contacts that allow for monitoring and alerting of any issues or faults.
Specifications
Manufacturer
Phoenix Contact
Surge Protector Line Voltage
60 Volt ±10 %
Component
Surge Arrester
Features
Surge protection for (-) 48 V DC in lightning protection level III and IV due to discharge capacity of 12.5 kA per position
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
Vibration-resistant latching ensures the plug remains firmly in place
Downloads
Phoenix 2801240 CAD data International.dxfPhoenix 2801240 CAD data International.pdfPhoenix 2801240 CAD data International.stpPhoenix 2801240 Flyer English.pdfPhoenix 2801240 Manufacturers declaration English.pdfPhoenix 2801240 Manufacturers declaration International.pdfPhoenix 2801240 Package Slip International.pdfPhoenix 2801240 Product Information English.pdfPhoenix 2801240 Software International.zipPhoenix 2801240 Surge Protection English.pdfPhoenix 2801240 Tender Text English.zip
