Code: 72134

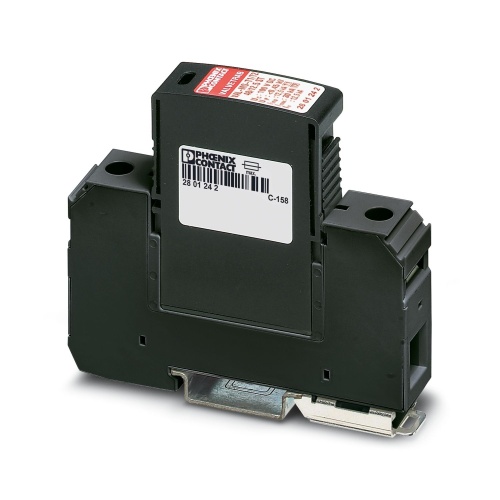

Phoenix Contact 2801241 Lightning/surge arrester type 1/2 VAL-MS-T1/T2 48/12.5/1+0
Normally In Stock
VAL-MS-T1/T2 48/12.5/1+0 Phoenix 2801241 Arrester combination 60 VAC ±10 % Screw connection,Fork-type cable lug Lightning/surge arrester type 1/2 Surge Protection
Condition: New
Usually ships Same Day or Next Day$220.54
Sale Price
$183.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

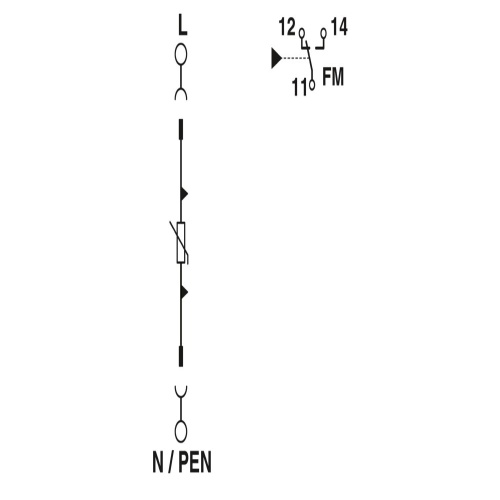

Phoenix Contact 2801241 A universal varistor-based plug-in device designed to protect single-phase power supply networks that use a common neutral and earth connection with two conductors, where the live wire (L1) is connected to the line and the neutral (N) and earth (PE) are connected separately.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
B3
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Nominal Discharge Current
350 Amp
Connection Method
Screw Connection
Surge Protector Type
Surge Protection For Information Technology
Maximum Continous Voltage
6 Volt
Surge Protector Line Voltage
60 Volt ±10 %
Component
Surge Arrester
Features
Surge protection for (-) 48 V DC in lightning protection level III and IV due to discharge capacity of 12.5 kA per position
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
Vibration-resistant latching ensures the plug remains firmly in place
Downloads
Phoenix 2801241 CAD data International.dxfPhoenix 2801241 CAD data International.pdfPhoenix 2801241 CAD data International.stpPhoenix 2801241 Flyer English.pdfPhoenix 2801241 Manufacturers declaration International.pdfPhoenix 2801241 Package Slip International.pdfPhoenix 2801241 Software International.zipPhoenix 2801241 Surge Protection English.pdfPhoenix 2801241 Tender Text English.zip
