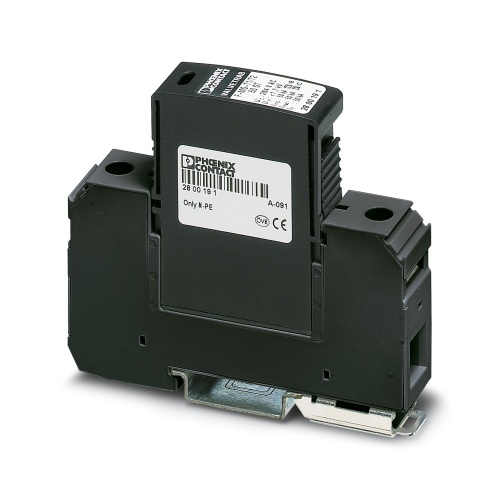

Phoenix Contact 2801136 Lightning/surge arrester type 1/2 F-MS-T1/T2 50
Normally In Stock
Code: 72124
F-MS-T1/T2 50 Phoenix 2801136 Arrester combination 240/415 VAC Screw connection,Fork-type cable lug Lightning/surge arrester type 1/2 Surge Protection
Condition: New
Usually ships Same Day or Next Day$225.01
Sale Price
$187.51
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

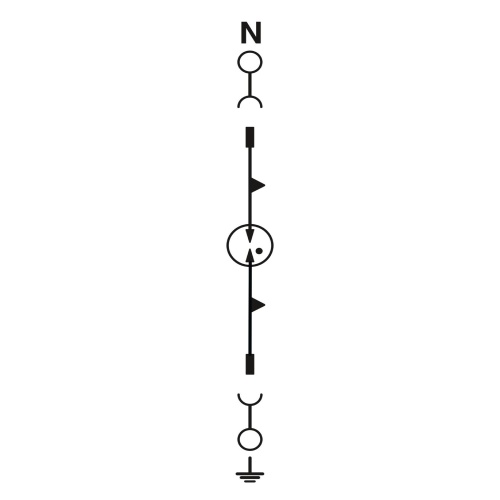

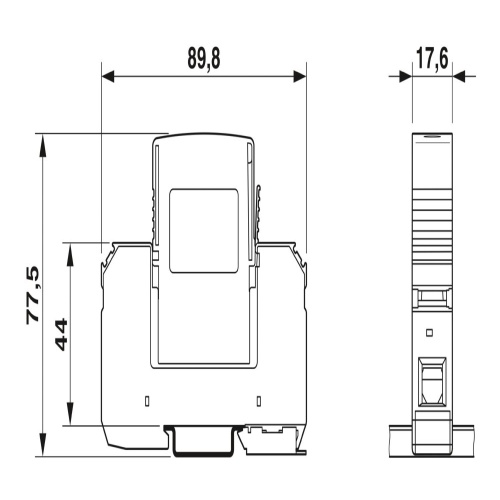

Phoenix Contact 2801136 A lightning/surge arrester featuring a base element and protective plug with an N-PE total current spark gap is designed to be mounted on the NS 35/7.5 base plate, with a housing width of 17.5mm suitable for 1TE applications.
Specifications
Max Discharge Capacity
80 A
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
580 Volt
Nominal Discharge Current
15 Ka
Surge Protector Line Voltage
240-415 Volt
Component
Surge Arrester
Features
Optimum lightning current and surge protection with our powerful type 1+2(+3) combined lightning current and surge arresters with no line follow current
High system availability with high follow current extinguishing capability
Information concerning the status of the protective devices is always available by means of visual, mechanical status indicator and remote indication contact
Pluggable protective devices enable easy maintenance
Downloads
Phoenix 2801136 Flyer English.pdfPhoenix 2801136 Manufacturers declaration English.pdfPhoenix 2801136 Manufacturers declaration International.pdfPhoenix 2801136 Package Slip International.pdfPhoenix 2801136 Software International.zipPhoenix 2801136 Surge Protection English.pdfPhoenix 2801136 Tender Text English.zip
