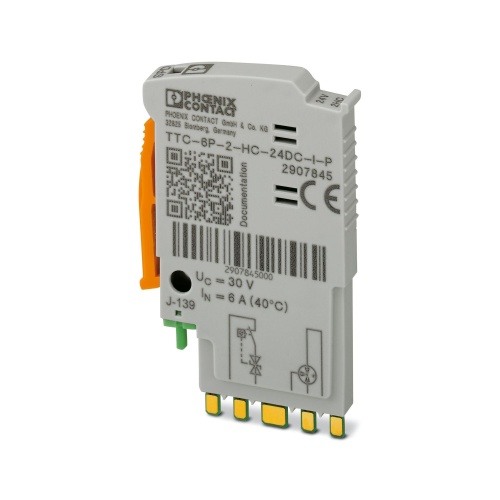

Phoenix Contact 2907845 Surge protection plug TTC-6P-2-HC-24DC-I-P
Normally In Stock
Code: 71986
TTC-6P-2-HC-24DC-I-P Phoenix 2907845 Replacement plug 24 VDC pluggable Surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$190.38
Sale Price
$158.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2907845 A surge protection plug features an integrated status indicator module, designed to handle high nominal currents in 2-wire floating signal circuits. It is rated for 24V DC nominal voltage.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Fault Warning
Multi-Stage
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Optional Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
24 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Maximum Continous Voltage
30 Volt
Nominal Discharge Current
10 Ka
Component
Surge Protection Plug
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2907845 CAD data International.dxfPhoenix 2907845 CAD data International.pdfPhoenix 2907845 CAD data International.stpPhoenix 2907845 Certification International-2.pdfPhoenix 2907845 Certification International.pdfPhoenix 2907845 Flyer English-2.pdfPhoenix 2907845 Flyer English.pdfPhoenix 2907845 Manufacturers declaration English.pdfPhoenix 2907845 Manufacturers declaration International.pdfPhoenix 2907845 Surge Protection English.pdfPhoenix 2907845 Tender Text English.zip
