Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

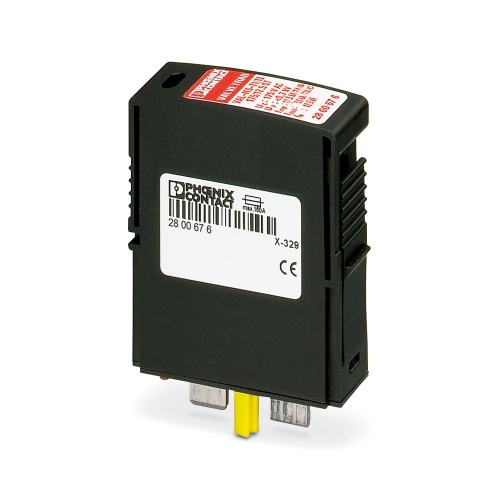

Phoenix Contact 2910328 Type 1 surge protection plug VAL-US-48/65-P
Normally In Stock
Code: 71965
VAL-US-48/65-P Phoenix 2910328 Replacement plug 60 VDC ±10 % VALVETRAB plug-in system Type 1 surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$167.62
Sale Price
$139.68
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

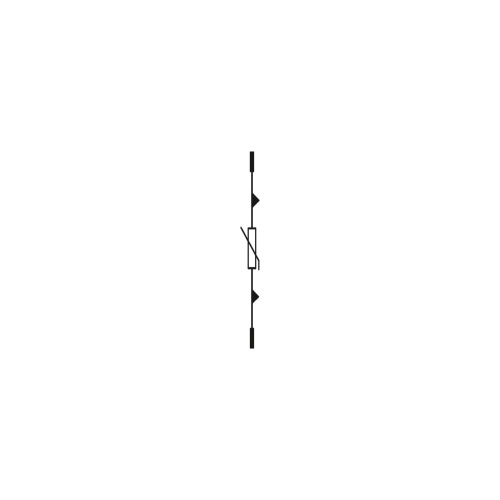

Phoenix Contact 2910328 A UL recognized type 1 SPD (surge protection device) and IEC type 2 surge protection plug features a varistor and thermal disconnect specifically designed to work with VAL-US base elements, providing an added layer of safety and alerting users to potential mechanical or visual faults.
Specifications
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Arrester
Maximum Continous Voltage
580 Volt
Nominal Discharge Current
15 Ka
Surge Protector Line Voltage
60 Volt ±10 %
Component
Surge Protection Plug
Features
Thermal disconnect device for each individual plug
Optical, mechanical status indication for the individual arresters
Pluggable
Mechanical coding of all slots
Secure hold of plugs in the event of high lightning current loads and strong vibrations thanks to new latching
Downloads
Phoenix 2910328 CAD data International.dxfPhoenix 2910328 CAD data International.pdfPhoenix 2910328 CAD data International.stpPhoenix 2910328 Flyer English.pdfPhoenix 2910328 Manufacturers declaration International.pdfPhoenix 2910328 Package Slip International.pdfPhoenix 2910328 Software International.zipPhoenix 2910328 Surge Protection English.pdfPhoenix 2910328 Tender Text English.zip
