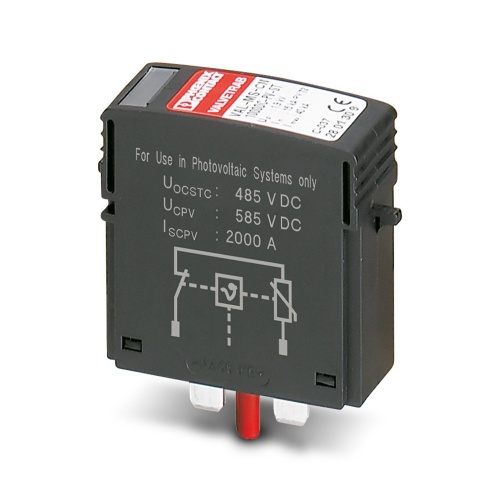

Phoenix Contact 2800624 Type 2 surge protection plug VAL-MS 1000DC-PV-ST
Normally In Stock
Code: 71961
VAL-MS 1000DC-PV-ST Phoenix 2800624 Replacement plug 1170 VDC pluggable Type 2 surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$145.27
Sale Price
$121.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2800624 Replacement plugs for combining multiple photovoltaic (PV) arresters from the VAL-MS 1000DC-PV product series are available.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
B3
Direction of Action
Line-Line
Direction of Action
Line-Signal Ground-Shield
Direction of Action
Signal Ground-Shield-Earth Ground
Manufacturer
Phoenix Contact
Nominal Discharge Current
350 Amp
Connection Method
Screw Connection
Surge Protector Type
Surge Protection For Information Technology
Maximum Continous Voltage
6 Volt
Surge Protector Line Voltage
1170 Volt
Component
Surge Protection Plug
Features
Optimum inverter protection, thanks to low protection level
Reliable contact, thanks to integrated rotating latch
Easy replacement, thanks to plug-in arresters
Increased safety, thanks to compliance with standard EN 50539-11
Efficient replacement of defective plugs, thanks to visual status indicator
Protection against mismatching, thanks to keyed plugs and base elements
Downloads
Phoenix 2800624 CAD data International.dxfPhoenix 2800624 CAD data International.pdfPhoenix 2800624 CAD data International.stpPhoenix 2800624 Flyer English.pdfPhoenix 2800624 Manufacturers declaration International.pdfPhoenix 2800624 Package Slip International.pdfPhoenix 2800624 Software International.zipPhoenix 2800624 Surge Protection English.pdfPhoenix 2800624 Tender Text English.zip
