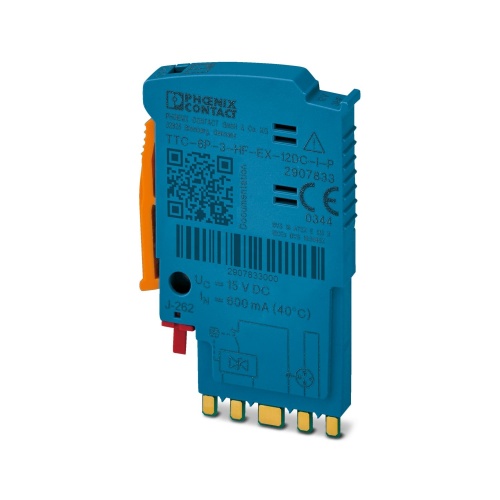

Phoenix Contact 2907833 Surge protection plug TTC-6P-3-HF-EX-12DC-I-P
Normally In Stock
Code: 71954
TTC-6P-3-HF-EX-12DC-I-P Phoenix 2907833 Replacement plug 12 VDC pluggable Surge protection plug Surge Protection
Condition: New
Usually ships Same Day or Next Day$199.13
Sale Price
$165.94
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

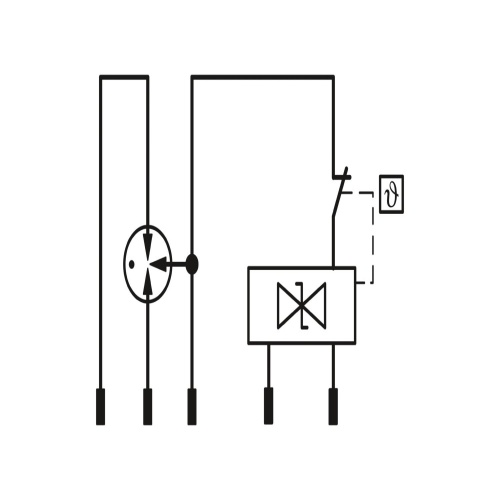

Phoenix Contact 2907833 A surge protection plug designed for use in 3-wire Ex i signal circuits, featuring an integrated status indicator and a common reference potential, is suitable for high-frequency (HF) applications and operates at a nominal DC voltage of 12V.
Specifications
Manufacturer
Phoenix Contact
Surge Protector Line Voltage
12 Volt
Component
Surge Protection Plug
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
Space-saving and cost-saving with a narrow overall width of just 6 mm
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads

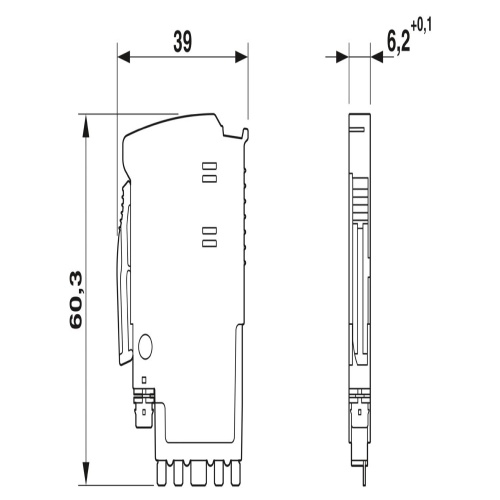

Phoenix 2907833 CAD data International.dxfPhoenix 2907833 CAD data International.pdfPhoenix 2907833 CAD data International.stpPhoenix 2907833 Certification International-2.pdfPhoenix 2907833 Certification International-3.pdfPhoenix 2907833 Certification International.pdfPhoenix 2907833 Flyer English-2.pdfPhoenix 2907833 Flyer English.pdfPhoenix 2907833 Manufacturers declaration English.pdfPhoenix 2907833 Manufacturers declaration International.pdfPhoenix 2907833 Package Slip International.pdfPhoenix 2907833 Surge Protection English.pdfPhoenix 2907833 Tender Text English.zip
