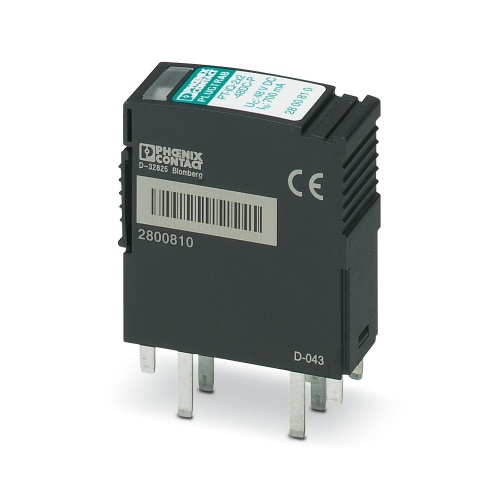

Phoenix Contact 2800810 Surge protection plug PT-IQ-2X2-48DC-P
Normally In Stock
Code: 71929
PT-IQ-2X2-48DC-P Phoenix 2800810 Replacement plug 48 VDC pluggable Surge protection plug Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$338.09
Sale Price
$281.74
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2800810 A surge protection plug with a built-in multi-stage status indicator is available, specifically designed to accommodate two separate 2-wire floating signal circuits. The device operates at a nominal voltage of 48V DC and features an integrated status indicator on the module itself.
Specifications
Arrester Class according to IEC
I
Arrester Class according to IEC
T1
Fault Warning
Optical
Arrester Class according to IEC
I - II
Arrester Class according to IEC
T1 - T2
Impulse Discharge Current
12.5 Ka
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
48 Volt
Surge Protector Type
Replacement Plug
Maximum Continous Voltage
75 Volt
Nominal Discharge Current
12.5 Ka
Component
Surge Protection Plug
Features
Maximum ease of maintenance, thanks to the 2-piece design
Integration of the status message into the system controller via group remote signaling
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Predictive monitoring with 3-stage LED display
Maximum protection for MCR applications with high discharge capacity
Downloads
Phoenix 2800810 CAD data International.dxfPhoenix 2800810 CAD data International.pdfPhoenix 2800810 CAD data International.stpPhoenix 2800810 Flyer English-2.pdfPhoenix 2800810 Flyer English.pdfPhoenix 2800810 Manufacturers declaration English.pdfPhoenix 2800810 Manufacturers declaration International.pdfPhoenix 2800810 Package Slip International.pdfPhoenix 2800810 Software International.zipPhoenix 2800810 Surge Protection English.pdfPhoenix 2800810 Tender Text English.zip
