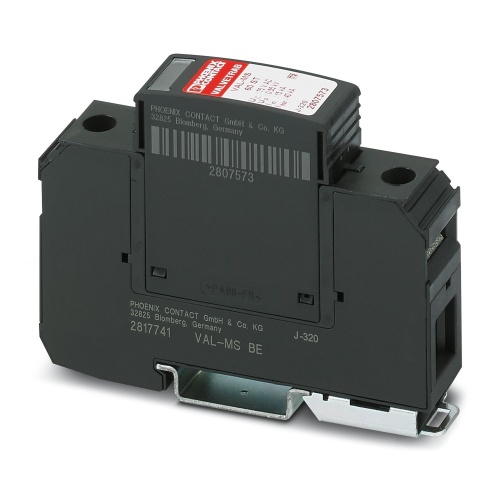

Phoenix Contact 2868020 Type 2 surge arrester VAL-MS 60
Normally In Stock
Code: 71892
VAL-MS 60 Phoenix 2868020 Surge arrester 60 VAC Screw connection,Fork-type cable lug Type 2 surge arrester Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$161.80
Sale Price
$134.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2868020 A surge arrester featuring a base element and protective connector paired with a high-capacity varistor is designed to be mounted on an NS 35/7.5, single-channel configuration.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Arrester Class according to IEC
B2
Direction of Action
Line-Line
Direction of Action
Line-Ground-Shield
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Surge Protection For Information Technology
Maximum Continous Voltage
185 Volt
Nominal Discharge Current
≤ 5 Ka
Surge Protector Line Voltage
60 Volt
Component
Surge Arrester
Features
Wide range of applications due to various nominal voltages
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
High degree of modularity provides individual solutions for every application
Downloads
Phoenix 2868020 CAD data International.dxfPhoenix 2868020 CAD data International.pdfPhoenix 2868020 CAD data International.stpPhoenix 2868020 Flyer English.pdfPhoenix 2868020 Manufacturers declaration English.pdfPhoenix 2868020 Manufacturers declaration International.pdfPhoenix 2868020 Package Slip International.pdfPhoenix 2868020 Software International.zipPhoenix 2868020 Surge Protection English.pdfPhoenix 2868020 Tender Text English.zip
