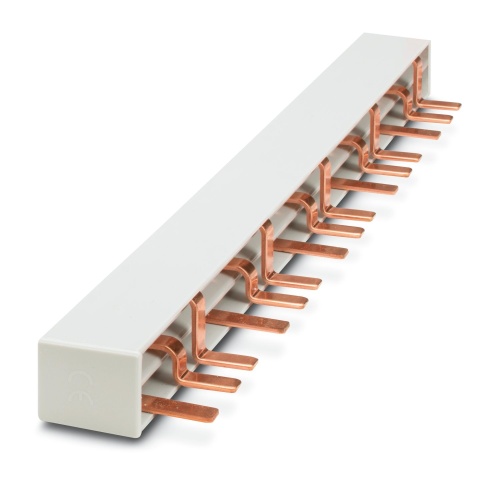

Phoenix Contact 1022234 Wiring bridge TMC 7 B3 80 57 C
Normally In Stock
Code: 70875
Phoenix 1022234 Bridge 80 A (End feed) 600 VAC/DC Protective Devices
Condition: New
Usually ships Same Day or Next Day$109.75
Sale Price
$91.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

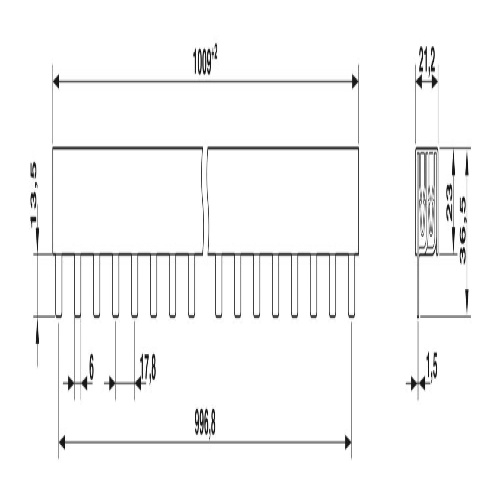

Phoenix Contact 1022234 The bus bar for TMC 73... is suitable for three-phase circuit breakers with a 17.8mm pitch and can accommodate up to 57 positions, featuring a rating of 80A for end feed applications and supporting both 600V AC/DC voltages. It is also UL 508 listed, allowing it to be connected with UL 1077 rated circuit breakers.
Specifications
Breaker Voltage Rating
600 VAC
Breaker Amperage Rating
80 Amp
Component
Bridge
Breaker Voltage Rating
600 VDC
Manufacturer
Phoenix Contact
Breaker Jumper Positions
56 Positions
Features
Can be used worldwide due to international approvals
Suitable for various grid types, as it is available in 1-, 2-, 3-pos. versions
Ideally coordinated protection due to various tripping characteristics and a wide selection of nominal currents
Reduced inventory because of suitability for AC and DC applications
Optional accessories enable remote control and monitoring
Downloads
Phoenix 1022234 CAD data International.dwgPhoenix 1022234 CAD data International.igsPhoenix 1022234 CAD data International.stpPhoenix 1022234 CAD data International.wrlPhoenix 1022234 Flyer English.pdfPhoenix 1022234 Manufacturers declaration International.pdfPhoenix 1022234 Tender Text English.zipPhoenix 1022234 Various English.pdf
