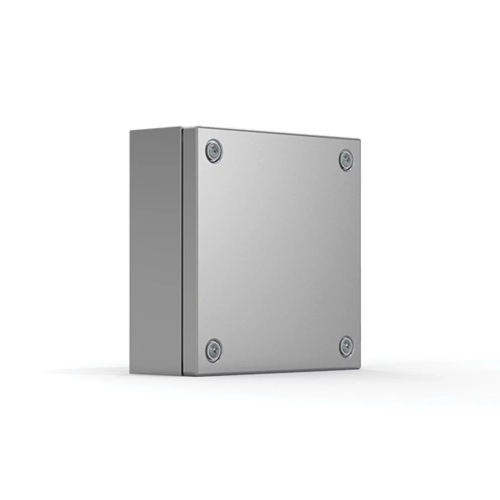

nVent Hoffman SSTB151508 IEC Terminal Box Stainless Steel
Normally In Stock
Code: 69953
nVent Hoffman SSTB151508 6"x8"x6" Stainless Steel NEMA Type 4X,Type 12,Type 13 Outdoor-Indoor Wall-Mount IEC Terminal Box Stainless Steel (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$370.90
Sale Price
$309.08
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman SSTB151508 IEC Terminal Box Stainless Steel IEC stainless steel terminal box range, SSTB model with a IP 66 protection degree. The SSTB is well suited for indoor and outdoor environments thanks to its corrosion resistance. Water and dust are prevented from entering the terminal box, thus eliminating the risk for component failure, and with that, unnecessary downtime.
Specifications
Enclosure Depth
6"
Enclosure Environment Rating
Outdoor-Indoor
Enclosure Hinge Type
Standard Hinge
Enclosure Composition
304 Stainless Steel
Enclosure NEMA Rating
NEMA Type 4
Enclosure Width
8"
Line
Global IEC
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Enclosure Height
6"
Enclosure Latch Type
Screw
Component
IEC Enclosure
Enclosure Number of Doors
1 Door
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Manufacturer
Hoffman
Features
Finish: 400 pre-grained stainless steel.
Gasket: Sealing is ensured by an injected polyurethane gasket. For AISI 316L, sealing is ensured by an injected silicone gasket.
Earthing: M8x18 mm earthing studs in body and cover, M8 nuts, earthing washers and earthing labels.
Delivery: Body, cover, cover screws, fixing screws, cover plugs and earthing facilities.
Body: Folded and seam welded. Four M6x13 studs for bottom profile / mounting plate fixation. For ease of installation, each back corner of the enclosure is laser-marked to precisely indicate where to drill holes and affix AWS wall mounting brackets.
Material: AISI 304L pre-grained stainless steel / AISI 316L (on request). Body: 1 mm. Cover: 1.5 mm.
