Code: 69781

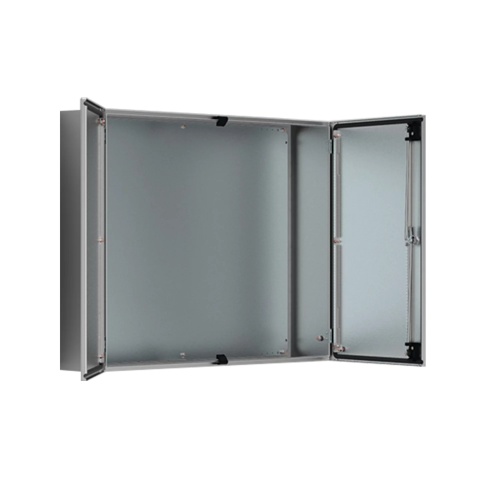

nVent Hoffman ADR1001030 GLOBAL IEC Stainless Steel Enclosure
nVent Hoffman ADR1001030 40"x40"x12" Type 12,Type 13 Outdoor-Indoor Wall-Mount Enclosure. (DOES NOT INCLUDE BACK PANEL)
Condition: New
Usually ships Same Day or Next DayDOES NOT INCLUDE BACK PANEL
$4693.62
Sale Price
$3911.35
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman ADR1001030 GLOBAL IEC Stainless Steel Enclosure IEC stainless steel single door wall mounted enclosure range, ASR model has IP 66 protection degree. Risk for component failure, and with that unnecessary downtime, is eliminated as water and dust are prevented from entering the enclosure. Enclosure is well suited for industries such as food and beverage and pharmaceuticals, as well as almost all other environments, grade dependant.
Specifications
Enclosure Hinge Type
Standard Hinge
Enclosure Depth
12"
Enclosure Composition
304 Stainless Steel
Enclosure Number of Doors
2 Door
Enclosure Height
40"
Enclosure Width
40"
Line
Global IEC
Enclosure Environment Rating
Indoor
Enclosure Door Type
Solid
Enclosure Mount Type
Wall Mount
Component
IEC Enclosure
Enclosure NEMA Rating
NEMA Type 12
Enclosure NEMA Rating
NEMA Type 13
Manufacturer
Hoffman
Enclosure Lock Type
Keylock
Features
Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment. On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All sides, from 800 mm and above, are strengthened by folded edges. By using the AMG accessory, the mounting plate position can be adjusted to any depth.
Door: Corner formed in one piece. Surface mounted, with 130° opening. Concealed AISI 304 stainless steel hinges with captive pin. Sealing is ensured by an injected polyurethane gasket. For AISI 316L, sealing is ensured by an injected silicone gasket. Inner M6 welded studs to mount optional door profiles MMDP.
Lock: nVent HOFFMAN customized zamak double-bit 3 mm lock, with 90° movement and anti-vibration mechanism. Espagnolette three point locking. Stainless steel lock and other versions are available as accessories.
Cable access: No gland plate openings as standard, to maximise sealing and cleanliness.
Body: Folded and seam welded. For ease of installation, each back corner of the enclosure is laser-marked to precisely indicate where to drill holes and affix AWS wall mounting brackets.
Material: AISI 304L / AISI 316L pre-grained stainless steel. Body: 1.5 mm. Door: 2 mm. Mounting plate: 2.5 mm galvanized steel.
Finish: 400 pre-grained stainless steel.
Additional information: For outdoor environments exposed to precipitation, the use of a rain hood is advised. Also in environments known for quick temperature changes, consideration to condensation should be taken. Please see the thermal management section.
Delivery: Enclosure with door, mounting plate, metallic key and mounting accessories.
Protection: Corresponds with IP 55, TYPE 12, IK 10.
