The purpose of ground-fault protection is to measure the ground leakage current of an electrical installation, or part of an installation, and interrupt the power supply if the ground-fault current becomes dangerous to property

Vigirex™ ground-fault relays, with associated sensors (current transformers), measure the leakage current in an electrical installation to detect levels that may be damaging

When used for protection, they cause an associated circuit breaker or switch to interrupt the supply of power to the protected system

They may also be used for monitoring only, with output to an alarm

The Vigirex product line can be used with loads up to 3200A

It includes fixed sensitivities from 30 mA to 1 A and adjustable sensitivities up to 30 A, providing a solution that offers both flexibility and performance

The responsiveness of the Vigirex relay is determined from a combination of their sensitivity (measured in milliamperes or amps) and their time delays (duration that the threshold of ground-fault is exceeded)

These can range from instantaneous (no intentional delay) to 4.5 seconds

The shortest delay will provide the greatest protection, while the longest will minimize nuisance tripping

The range of time delays is also helpful when providing a coordinated ground-fault protection scheme

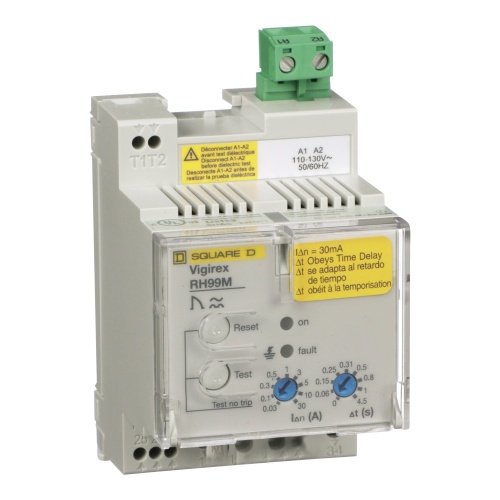

This Vigirex, time delay switch is rail mounted

This product complys to UL standards

This product has a control current voltage of 110-130 VAC.
