Eaton C361SD122R Rotary Disconnect Switch - 60 Amp, NEMA 1/12, 208 VAC
Normally In Stock
Code: 626497
Eaton C361SD122R Rotary Disconnect Switch - 60 Amp, NEMA 1/12, 208 VAC
Condition: New
Usually ships Same Day or Next Day$897.19
Sale Price
$747.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

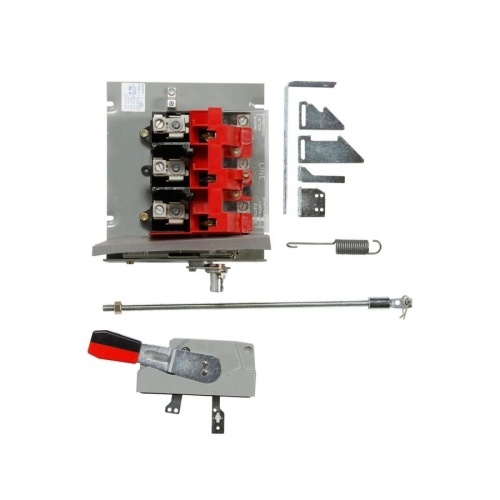

Eaton C361SD122R - Type C361 Flange Mounted Disconnect Switch, Switch and operating mechanism with handle, 4 in handle, Rejection Clips, #2-14 AWG Cu/Al, NEMA 1 or 12 enclosure, Right-hand mounting, 15 hp at 208 Vac fuse clip rating, 60A, 7-16 in depth - Maximum horsepower ratings refer to switch only. Fuse clips are non-interchangeable type for Class H, J, K, or R type fuses only. Components individually boxed and shipped in overpack carton.
Specifications
Poles
Three Pole
Enclosure NEMA Rating
NEMA 1
Enclosure NEMA Rating
NEMA 12
Disconnect Enclosure Width
24 In
Manufacturer
Eaton
Enclosure Disconnect Type
Rotary Disconnect Switch
Current
100 Amp
Voltage
480 VAC
Disconnect Enclosure Height
9.875 In
Disconnect Enclosure Depth
19.188 In
Features
Full range of UL508 and UL98 products, 600VAC max
Provide load break switching and isolation for machine and control circuits - R5 Series (UL508), 16A – 100A
Available in fusible and non-fusible styles providing quick-make, quick-break functionality for safety isolation of any low voltage circuit - R9 Series (UL98), 30A - 1200A
Broad offering of handles, shafts and accessories to accommodate a variety of applications
Horsepower rated
Available designs for manual transfer applications (16A – 1200A)
