Code: 626333

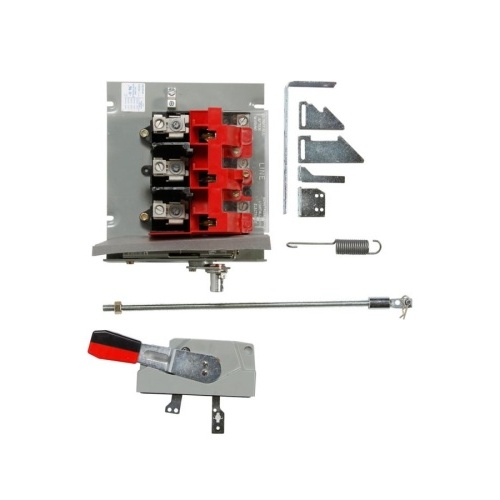

Eaton C361NE1 Rotary Disconnect Switch - 100 Amp, NEMA 1/12, 600 VAC, 250 VDC
Normally In Stock
Eaton C361NE1 Rotary Disconnect Switch - 100 Amp, NEMA 1/12, 600 VAC, 250 VDC
Condition: New
Usually ships Same Day or Next Day$1325.04
Sale Price
$1104.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Eaton C361NE1 - Type C361 Flange Mounted DS, Switch and operating mechanism with handle, 4 in handle, #1/0-14 AWG Cu/Al, NEMA 1 or 12 enclosure, Right-hand MTG, 60 hp at 480 Vac, 75 hp at 600 Vac, 20 hp at 250 Vdc, Non-fusible, 100A, 7-16 in depth - Maximum horsepower ratings refer to switch only
Specifications
Voltage
240 VAC
Enclosure NEMA Rating
NEMA 1
Enclosure NEMA Rating
NEMA 12
Manufacturer
Eaton
Enclosure Disconnect Type
Rotary Disconnect Switch
Current
30 Amp
Component
Rotary Disconnect Switch
Poles
3 Pole
Disconnect Enclosure Width
24"
Disconnect Enclosure Height
9.875"
Disconnect Enclosure Depth
19.188"
Features
Full range of UL508 and UL98 products, 600VAC max
Provide load break switching and isolation for machine and control circuits - R5 Series (UL508), 16A – 100A
Available in fusible and non-fusible styles providing quick-make, quick-break functionality for safety isolation of any low voltage circuit - R9 Series (UL98), 30A - 1200A
Broad offering of handles, shafts and accessories to accommodate a variety of applications
Horsepower rated
Available designs for manual transfer applications (16A – 1200A)
