Code: 624635

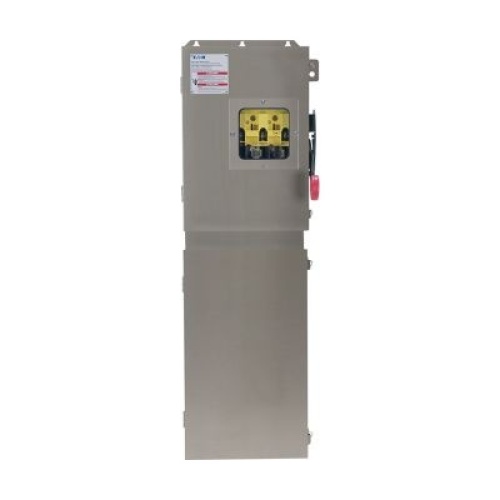

Eaton DD325NDKW-00V2 Single Throw Safety Switch - 400 Amp, NEMA 12/3R, Three Pole, Painted Galvanized Steel, 240 VAC, Four Wire
Normally In Stock
Eaton DD325NDKW-00V2 Single Throw Safety Switch - 400 Amp, NEMA 12/3R, Three Pole, Painted Galvanized Steel, 240 VAC, Four Wire
Condition: New
Usually ships Same Day or Next Day$10541.29
Sale Price
$8784.41
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Eaton DD325NDKW-00V2 - Voltage indicator load side, 400 A, NEMA 12/3R, w/ neutral, Three-pole, Four-wire, 240 V, Max Hp: 250, 350 hp (3PH @480/600 V), (2)#1/0(1)#1/0-(2)300 kcmil-#1/0, or (1)175 kcmil-#1/0 - V indicator load side, w/ window
Specifications
Enclosure Disconnect Type
Single Throw Safety Switch
Enclosure NEMA Rating
NEMA 3R
Enclosure NEMA Rating
NEMA 12
Component
Fusible Disconnect Switch
Manufacturer
Eaton
Enclosure Composition
Painted Galvanized Steel
Disconnect Enclosure Width
12.33"
Disconnect Enclosure Height
24.32"
Disconnect Enclosure Depth
16.41"
Features
Minimizes exposure, enhances safety, and maximizes uptime with revolutionary design
Provides isolation from incoming line-side cables when accessing fuse compartment
Safety interlock prevents doors from being opened when switch is energized
Accepts many safety switch accessories, including auxiliary contacts, control pole, and neutrals
Provides additional verification as to whether or not the circuit is open with optional voltage indicators
UL® 98 standard, file no. E5239
