Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

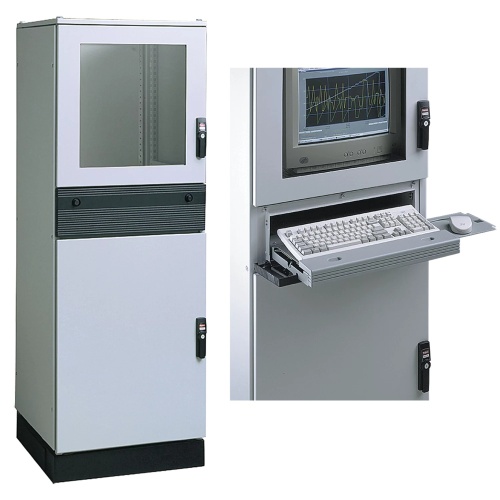

nVent Hoffman PPC1666 PROLINE-PC Modular Enclosure Type 12
Normally In Stock
Code: 61465
nVent Hoffman PPC1666 1600 mmx600 mmx600 mm PROLINE-PC Modular Enclosure Type 12
Condition: New
Usually ships Same Day or Next Day$11152.43
Sale Price
$9293.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman PPC1666 1600 mmx600 mmx600 mm PROLINE-PC Modular Enclosure Type 12
Specifications
Top Door Width
500 mm
Bottom Door Height
700 mm
Top Door Height
600 mm
Enclosure Depth
600 mm
Enclosure Width
600 mm
Component
Enclosure
Enclosure Environment Rating
Indoor
Enclosure NEMA Rating
NEMA Type 12
Line
PROLINE-PC
Manufacturer
Hoffman
Enclosure Height
1600 mm
Features
The vented frame shelf in the top compartment is constructed of 14 gauge steel and is painted with RAL 7035 textured light-gray polyester powder paint
Sealed keyboard compartment maintains enclosure integrity when the compartment door is opened
The 19-in. diagonal top window door, hinged on the left, offers viewing access for a variety of monitor sizes and has a small flush swing handle with keylock for system security
The ProLine keyboard compartment includes a locking feature, an angled palm rest, a cable access port for wiring and integral mouse pad holders for both left-handed and right-handed people
Three doors, two in front and one in back, provide convenient access
Frame is enclosed with solid sides, a solid top and a 100-mm solid base.
The accessory front opening accommodates a number of optional components, such as keyboard shelves and control compartments
The bottom compartment includes a solid door hinged on the left that has a small flush swing handle with key lock, compartment can be used to install computer equipment, panel-mounted equipment or rack mounted control systems
Downloads
Hoffman PPC1666 2D DXF CAD.zipHoffman PPC1666 3D STEP CAD.zipHoffman PPC1666 CSA Certification.pdfHoffman PPC1666 Dimension Drawing.gifHoffman PPC1666 EU Certification.pdfHoffman PPC1666 Large Enclosure Handling Manual.pdfHoffman PPC1666 Spec Sheet Europe.pdfHoffman PPC1666 Spec Sheet.pdfHoffman PPC1666 UL Certification.pdf
