Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 61350

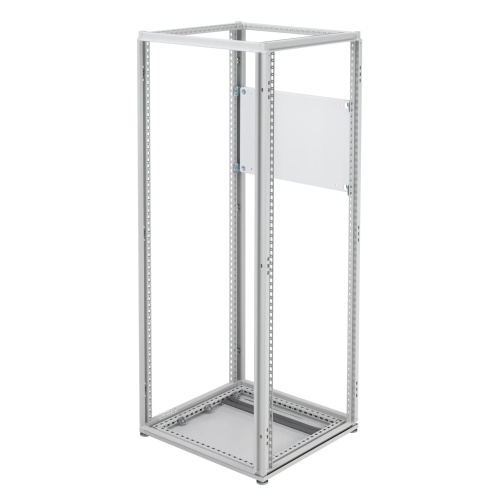

nVent Hoffman PPP910 Partial Subpanel
nVent Hoffman PPP910 Steel Partial Subpanel fits frame 1400 mm or taller
Condition: New
Usually ships Same Day or Next Day$656.04
Sale Price
$546.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Partial Subpanel for modular enclosure can be positioned vertically in 25- mm increments and also can be positioned at any depth in 25-mm increments using the optional grid straps. Partial Subpanels are 12 gauge steel, have flanges on four sides and are painted white. Conductive subpanels are unpainted galvanized steel. All necessary mounting hardware is included.
Specifications
Component
Subpanel
Sub Component
Partial Subpanel
Panel Composition
Painted Steel
Panel Width
1000 mm
Panel Height
900 mm
Line
PROLINE
Manufacturer
Hoffman
Features
Partial Subpanels have flanges on four sides for added strength.
Panels can be positioned vertically in 25-mm increments, but also can be positioned at any depth in 25-mm increments using depth-mounted grid straps for securing (sold separately)
All necessary mounting hardware is included
12 gauge steel, conductive or white painted finish
