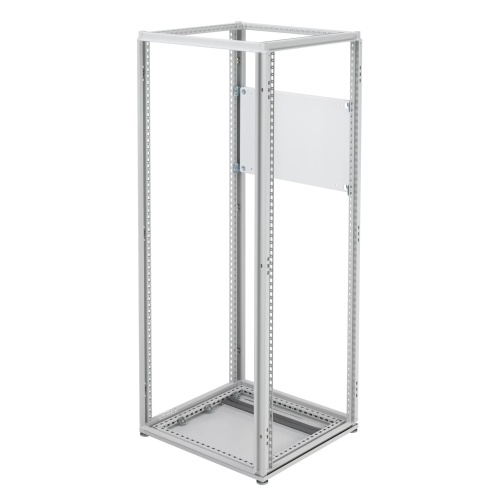

nVent Hoffman P2PP910 PROLINE G2 Partial Subpanel Front or Rear Mount Panel
Normally In Stock
Code: 61192
nVent Hoffman P2PP910 PROLINE G2 Painted Steel Partial Subpanel front or rear mount fits frame 900 mm x 1000 mm
Condition: New
Usually ships Same Day or Next Day$368.80
Sale Price
$307.33
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Partial Subpanels front or rear mount can be placed at any depth in 25-mm increments of a modular enclosure.
Specifications
Component
Subpanel
Sub Component
Proline G2 Partial Subpanel Front Or Rear Mount Panel
Panel Composition
Painted Steel
Panel Width
1000 mm
Panel Height
900 mm
Line
PROLINE G2
Manufacturer
Hoffman
Features
All necessary mounting hardware is included
Partial subpanels can be placed in the rearmost position of the enclosure at any vertical height in 25-mm increments, or placed at any depth using grid straps (not included)
Side-mount partial subpanels can be placed on either side at any vertical height in 25-mm increments
Flanges on all four sides for increased rigidity
12 gauge (2.5mm) mild steel, available standard in painted white or conductive finish
