nVent Hoffman P2AGBHK EZ-Load Glide Blocks
Normally In Stock
Code: 61165

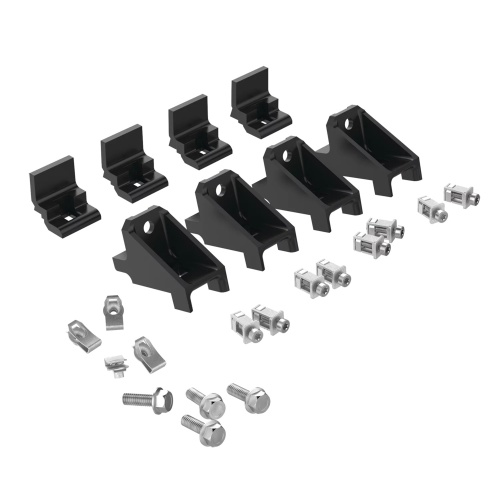

nVent Hoffman P2AGBHK EZ-Load Glide Blocks includes 4 blocks.
Condition: New
Usually ships Same Day or Next Day$88.10
Sale Price
$73.42
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
A complete set of PROLINE G2 EZ-Load Glide Blocks are included with every PROLINE G2 Full Mounting Subpanel and PROLINE G2 Industrial Packages. Made from a high performing glass re enforced polymer. Attaches to the frame using BV-M6 fasteners; attaches to the subpanel using hex bolts. Mounting hardware includedThis set of four additional blocks can be used if a replacement set is needed.Can be used to load a subpanel vertically from the front, rear or side. Can be used to load a subpanel while it is horizontal (i.e. on a table). Ensures subpanel is securely bolted to the frame in all four corners.
Specifications
Component
Glide Block
Sub Component
EZ-Load Glide Blocks
Manufacturer
Hoffman
Features
For vertical front loading, the rear portion of the glide blocks can be attached to the frame prior to subpanel insertion to set a defined panel depth, the front portion of the glide blocks use the frame rails as a guide, gliding smoothly to the preferred depth
Glide blocks made from a high performing, glass re-enforced polymer, and consist of integrating front and rear sections
All mounting hardware included, glide blocks secure to frame with BV-M6 fasteners, and to the subpanel with metric hex bolts
For horizontal loading, the frame can be lowered over the mounting subpanel, in this configuration the load of the subpanel is in a safe, static state
Support subpanel installation vertically from the front, rear, or side, or can be used to load a subpanel while the subpanel is horizontal
A complete set of EZ-Load Glide Blocks is supplied with each full-height mounting subpanel, this set of four blocks serves as a replacement set
If the subpanel is used in the rear most position, the rear glide blocks will not be used, as the frame supports the subpanel
If two subpanels are used in the enclosure in a back-to-back position the rear glide blocks will not be used
