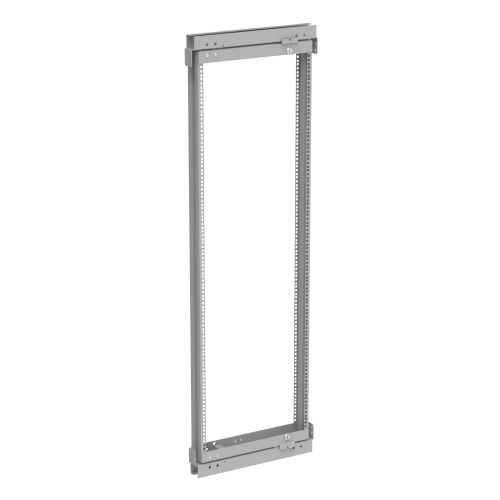

nVent Hoffman PSF148 Heavy-Duty Swing-Out Rack Frame
Normally In Stock
Code: 60987
nVent Hoffman PSF148 Heavy-Duty Swing-Out Rack Frame fits frame 1400 high or taller and 800 wide, 25 rack units.
Condition: New
Usually ships Same Day or Next Day$1622.28
Sale Price
$1351.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman PSF148 Heavy-Duty Swing-Out Rack Frame Allows 19" rack equipment to pivot out of the enclosure frame for better accessibility. The frames mount on hinges capable of 120-degree rotation. Hinges that provide 170-degree rotation are optional. Spring-loaded pivot post makes installation easy. Rack Frames are available for 600-, 700- and 800-mm wide enclosure frames. Mounting supports for an 800-mm wide enclosure frame permit you to either center the rack-mounting frame or position it right or left. The frame can also pivot from either the left or the right for maximum flexibility. Mounting supports can be assembled to the top and bottom of the frame for full-height rack-mounting frames. Smaller rackmounting frames can be mounted to the vertical frame members or to the grid straps. Order separately. Furnished with hinges, two quarter-turn latches and mounting hardware RAL 7035 textured gray finish. Complies with ANSI/EIA RS-310-D rack-mounting standards. Maximum equipment load is 300 lb. Mounting holes accommodate either English or metric cage nuts, which are ordered separately.
Specifications
Frame Composition
Steel
Frame Enclosure Width mm
800 mm
Frame Enclosure Height mm
1400 mm
Component
Swing-Out Rack Frame
Line
PROLINE
Manufacturer
Hoffman
Features
Furnished with hinges, two quarter-turn latches and mounting hardware
Rack Frames are available for 600-, 700- and 800-mm wide enclosure frames
Swing-Out Rack Frames can also be installed in right, left or both bays of 1200-mm wide frames using center uprights
Complies with ANSI/EIA RS-310-D rack-mounting standards
Spring-loaded pivot post makes installation easy
Swing-out mounting supports mount to inside of frame at any vertical location, flexibility to select any model size equal to or shorter in height (i.e. use of 1400mm rack frame in 2000mm high enclosure)
Maximum equipment load is 300 lb. (136 kg)
RAL 7035 textured light-gray polyester powder paint
Hinges that provide 170-degree rotation are optional
Swing-Out Rack Frame assemblies are supplied with mounting supports
Mounting holes accommodate either English or metric cage nuts, which are ordered separately
