nVent Hoffman PSF8 Partial Swing-Out Rack Frame
Normally In Stock
Code: 60911

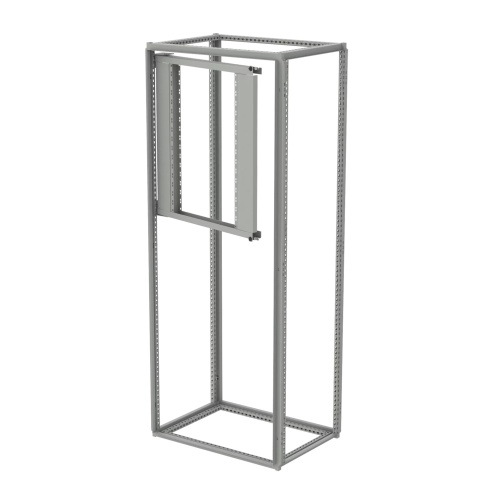

nVent Hoffman PSF8 Partial Swing-Out Rack Frame fits frame 800 wide, 16 rack units.
Condition: New
Usually ships Same Day or Next Day$1502.16
Sale Price
$1251.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
nVent Hoffman PSF8 Partial Swing-Out Rack Frame Maximum load rating is 100 lb . This 19" Rack Frame is used when a smaller, medium-duty swing-out frame is desired. Light-weight rack equipment fits nicely into this 800-mm tall swing-out frame, providing 90 degrees of rotation and increased accessibility. Furnished with hinges, two quarter-turn latches and mounting hardware. Complies with ANSI/EIA RS-310-D rack mounting standards. Swing-Out Rack Frame assemblies are supplied with mounting supports. Swing-Out Rack Frames can also be installed in right, left or both bays of 1200-mm wide frames using center uprights. Swing-out mounting supports mount to inside of frame at any vertical location. Mounting supports and swing-out frame can be located deeper into frame using grid system straps. Deeper mounting affects the degree of opening of swing-out frame.
Specifications
Frame Composition
Steel
Frame Enclosure Width mm
800 mm
Component
Swing-Out Rack Frame
Line
PROLINE
Manufacturer
Hoffman
Features
Swing-Out Rack Frame assemblies are supplied with mounting supports, Swing-Out Rack Frames can also be installed in right, left or both bays of 1200-mm wide frames using center uprights
Furnished with hinges, two quarter-turn latches and mounting hardware
Complies with ANSI/EIA RS-310-D rack mounting standards:
Swing-out mounting supports mount to inside of frame at any vertical location
Used with any height enclosure and hinged on the right or left
Side hinge brackets are used to mount the swing frame, allowing free access above and below the swing frame
Mounting supports and swing-out frame can be located at a variable depth using grid straps, swing is reduced when located at a depth other than front mounted
