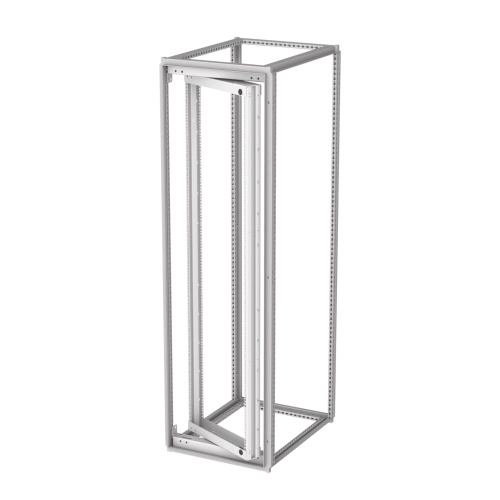

nVent Hoffman P2RSFH228 PROLINE G2 Heavy-Duty Swing-Out Rack Frame
Normally In Stock
Code: 60908
nVent Hoffman P2RSFH228 PROLINE G2 Heavy-Duty Swing-Out Rack Frame fits 2200 High x 600 Wide Frame with 43 rack units.
Condition: New
Usually ships Same Day or Next Day$1560.54
Sale Price
$1300.45
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
nVent Hoffman P2RSFH228 PROLINE G2 Heavy-Duty Swing-Out Rack Frame PROLINE G2 Heavy-Duty Swing-Out Rack Frame allows 19" rack equipment or rack panels to pivot for better accessibility. New center pivot option allows 350-degree rotation with a 400 lb. (181 kg) load rating. Left or right offset option allows the frame to pivot out of the enclosure and is capable of 140-degree rotation. Hinges that provide 170-degree rotation are an optional accessory. Furnished with quarter-turn latch, mounting hardware and mounting brackets. Mounting holes accommodate either English or metric cage nuts, which are ordered separately.
Specifications
Frame Composition
Steel
Frame Enclosure Width
24"
Frame Enclosure Width mm
600 mm
Frame Enclosure Height
87"
Frame Enclosure Height mm
2200 mm
Frame Rack Space
43 Rack Units
Line
PROLINE G2
Component
Swing-Out Rack Frame
Manufacturer
Hoffman
Features
Can be installed in right, left or both bays of 1200-mm wide frames using center uprights, frame reducing brackets may also be used to accommodate a variety of frame widths
Mounts to inside of frame at any vertical location, can be located at any depth using grid straps/rail system, deeper mounting affects the degree of opening of swing-out frame
Rack Frames are available for 600- and 800-mm wide enclosure frames, for 600-mm wide enclosures, the rack frame uses the full width, for 800-mm wide enclosures, there is 200-mm extra width and the rack frame can be installed on either side or in the center
Center pivot option allows 350-degree rotation, left or right offset option allows 140-degree rotation and swings frame partially out of outer frame, optional hinges allow 170-degree rotation and swing frame completely out of outer frame
Complies with ANSI/EI A RS-310-D rack-mounting standards
Three pivot options for maximum flexibility (center, left, right)
Has cutouts to mount Frame Tie-Down Brackets (not included) for cable management
Mounting holes accommodate either English or metric cage nuts, which are ordered separately
Furnished with quarter-turn latch, mounting hardware and mounting brackets
Full-height swing-out rack frames are mounted to the top and bottom of the enclosure frame, smaller swing-out rack frames can be mounted to the vertical frame members or to the grid straps (order separately)
