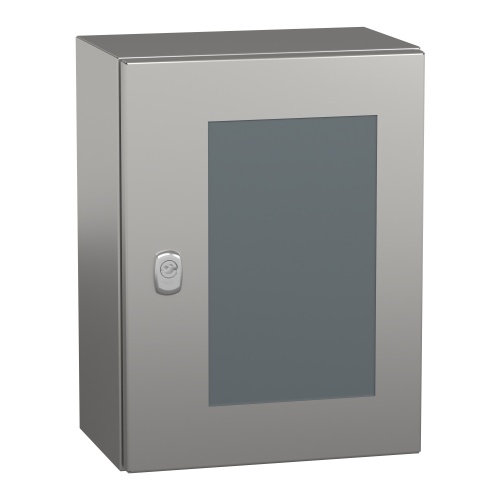

Schneider Electric NSYS3X4320T Spacial S3X Wall Mounted 304 Stainless Steel Enclosure - IP66, 15.75" x 11.81" x 7.87" (HxWxD)
Normally In Stock
Code: 592218
Schneider Electric NSYS3X4320T - 304 Stainless Steel - 3 mm double-bar lock - IP66 - 1 Door: Glass - Without Mounting Plate - Without Gland Plate - 15.75" x 11.81" x 7.87" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$860.27
Sale Price
$716.89
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

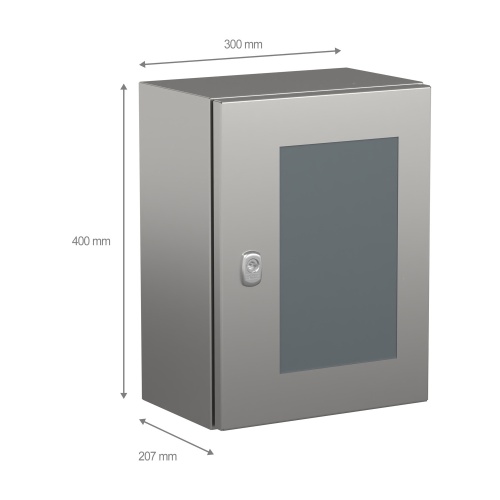

Schneider Electric NSYS3X4320T is a Spacial S3X wall-mounting enclosure with a stainless steel 304L body and door featuring a Securit glass. It has a reversible 120° opening glass door with a 3 mm double-bar lock. The enclosure measures 7.87 in (200 mm) deep, 15.75 in (400 mm) high, and 11.81 in (300 mm) wide. It is designed for corrosive environments and offers front accessibility for operation. The enclosure has a single-piece body with a cross-shaped structure and a gutter-shaped front rail.
Specifications
Enclosure Composition
304 Stainless Steel
Enclosure Depth
7.87"
Manufacturer
Schneider Electric
Enclosure Height
15.75"
Enclosure Mount Type
Wall Mount
Enclosure Number of Doors
1 Door
Component
Stainless Steel Enclosure
Enclosure Latch Type
Double-Bar Lock
Enclosure Mounting Plate
Without Mounting Plate
Line
Spacial S3X
Enclosure Gland Plate
Without Gland Plate
Enclosure Door Type
Glass
Enclosure Width
11.81"
Features
SPACIAL S3X Scotch Brite compact enclosure
H is400xW is300xD is200 mm
For corrosive/specific hygiene
No mounting plate included
3 mm double-bar lock
Glazed door
Wall mounting installation
Gutter-shaped front rail, single piece body
Stainless steel 304L body, Scotch-Brite brushed surface
Security glass
Protection IP 66, IK08, Grey RAL 7035
Certifications is CAN/CSA 22, UL 508 type A.
