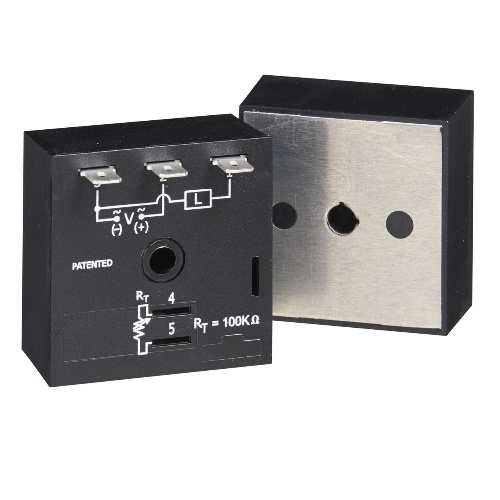

Littelfuse TH1B633 Time Delay Relay - 230 Volt, Normally Open
Normally In Stock
Code: 566449
Littelfuse TH1B633 - Delay On Make Timer Series - 230 Volt - Surface mount with 1 #10 (M5 x 0.8) screw - 10 A steady state; 100 A inrush (MUST BUY IN PACKS OF 10)
Condition: New
Usually ships Same Day or Next Day$131.63
Sale Price
$109.69
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse TH1B633 is a compact encapsulated relay with 10A steady state and 100A inrush load rating. It features 0.25-inch male quick connect terminals and operates at 50/60Hz with a tolerance of ±15%. The relay offers ±2% or 20ms repeat accuracy, ≥100 insulation resistance, and ≤±10% setpoint vs ambient temperature and operating voltage. With ≤2VA power consumption and ≤5% time delay tolerance, it ensures reliable performance. The relay has a dielectric breakdown of ≥2000V, a recycle time of ≤150ms, and an open state leakage current of ≅5A at 230V ac.
Specifications
Manufacturer
Littelfuse
Component
Time Delay Relay
Coil Voltage Rating
230 Volt
Relay Mounting
Surface Mount
Relay Timing Range
2 - 180 S
Relay Throws
Normally Open
Sub Component
Delay On Make
