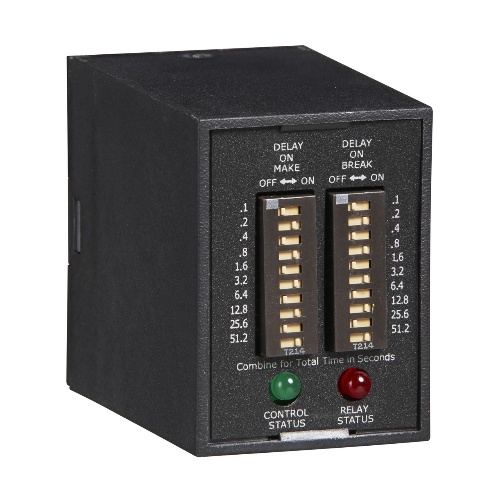

Littelfuse TDMB411 Time Delay Relay - 120 Volt, Double Throw, Single Pole
Normally In Stock
Code: 566400
Littelfuse TDMB411 - Delay on Make/Delay on Break Timer Series - 120 Volt - Plug-in socket - 10 A resistive @ 120/240 V ac and 28 V dc; 1/3 hp @ 230 V ac (MUST BUY IN PACKS OF 10)
Condition: New
Usually ships Same Day or Next Day$198.52
Sale Price
$165.43
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse TDMB411 is a versatile time delay relay with a compact design. It offers multiple output load ratings, including 10A resistive @ 120/240V AC and 28V DC, and 1/3hp @ 230V AC. It comes with an octal 8-pin plug-in or magnal 11-pin plug-in termination type. With input tolerance of -20% to +10% and repeat accuracy of ±0.1% or 20ms, it provides reliable performance in various applications. This microcontroller-based relay also features a control LED indicator (green) and a relay LED indicator (red) for clear visual feedback.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Manufacturer
Littelfuse
Component
Time Delay Relay
Coil Voltage Rating
120 Volt
Relay Mounting
Plug-In Socket
Sub Component
Delay On Make Delay On Break
Relay Timing Range
0.1 - 102.3 S
Features
Digital circuitry
Isolated, 10A, SPDT or DPDT output contacts
User selectable Delay-on-Make and Delay-on-Break time delay
Industry standard octal plug connection
LED Indication
DIP Switch Adjustment
