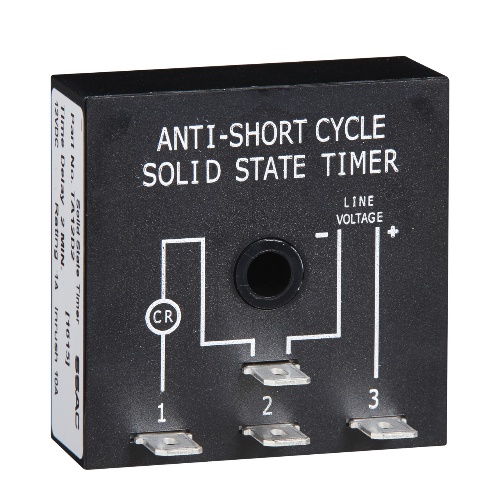

Littelfuse TA24A3 is a versatile product with a 1 A @ 60°C load rating. It features 0.25 in. (6.35 mm) male quick connect terminals for easy installation. With a wide input AC line frequency range of 50/60 Hz, it can adapt to different power sources. The encapsulated circuitry ensures durability, while the -15% - 35% time delay tolerance allows for flexibility. Its high dielectric breakdown of ≥2000V terminals to mounting surface guarantees safety. The TA24A3 has a low output voltage drop of ≤1.25 V, making it efficient. Its undervoltage trip voltage is approximately 20V, and the initiate time is around 16ms. Additionally, it has a minimum output load current of 75A. The input impedance of 450 Ohms (anticipator bypass) ensures stability. With a thermostat anticipator resistor of ≥1800 Ohms, precise temperature control is achievable. The lockout and random start delays are fixed at 3 minutes.
