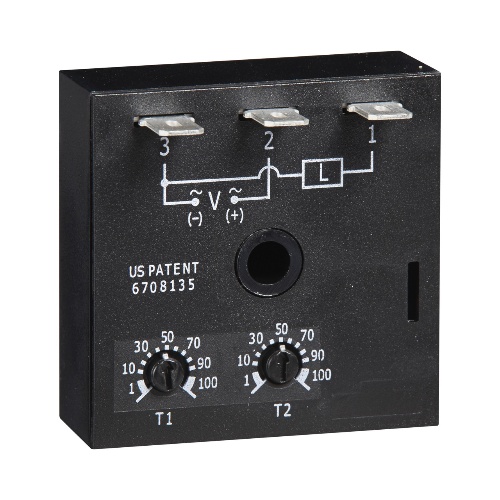

Littelfuse KSPDA2222RXE is a compact and reliable solid-state time delay relay. It features a steady state output load rating of 1 A, with an inrush capacity of 10 A for 16 ms. The termination type is 0.25 in. male quick connect terminals. With an input AC line frequency of 50/60 Hz and ±15% input tolerance, this relay is suitable for a variety of applications. It has a humidity resistance of 95% relative non-condensing and a repeat accuracy of ±0.5% or 20 ms. The insulation resistance is ≥100 and the setpoint vs ambient temperature and operating voltage is ≤±2%. The circuitry is encapsulated for added durability. With a power consumption of ≤2 VA and a time delay tolerance of ≤±5%, this relay offers efficient and precise operation. It has a reset time of ≤150 ms and a dielectric breakdown of ≥2000V terminals to mounting surface. The output voltage drop is ≅2.5 V @ 1 A. It is controlled by a microcontroller-based time delay type and has an open-state leakage current of ≅5 @230 V ac. The initiate time is ≤20 ms, with a capability of ≤1500 operations per minute.
