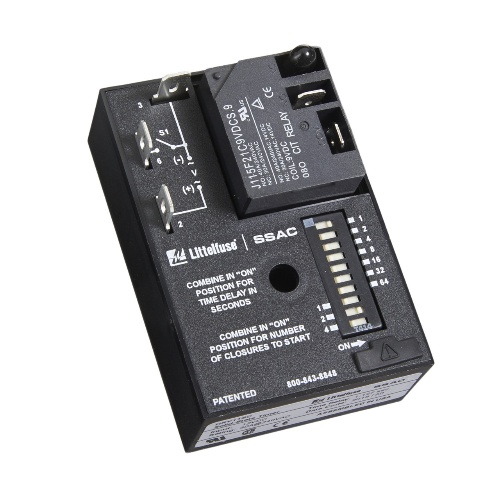

Littelfuse HRV24AC Time Delay Relay - 24 Volt, Double Throw, Single Pole
Normally In Stock
Code: 566198
Littelfuse HRV24AC - Vending Coin Counter Timer Series - 24 Volt - Surface mount with 1 #10 (M5 x 0.8) screw (MUST BUY IN PACKS OF 10)
Condition: New
Usually ships Same Day or Next Day$192.31
Sale Price
$160.26
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Littelfuse HRV24AC is a general-purpose relay with a load rating of 30A at 125/240V AC and 15A at 28V DC. It has a termination type of 0.25 in. male quick connect terminals and operates at a frequency of 50/60Hz. The relay has a humidity tolerance of 95% non-condensing and a repeat accuracy of ±0.1%. It is equipped with surge protection and has a power consumption of ≤4VA. The HRV24AC has a maximum life of 1 x 10⁶ cycles.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Manufacturer
Littelfuse
Component
Time Delay Relay
Coil Voltage Rating
24 Volt
Relay Mounting
Surface Mount
Sub Component
Counters
Relay Timing Range
0.25 - 31.75 M
Features
Microcontroller based
Encapsulated
30A , 1Hp at 125VAC, normally open contacts
Switch selectable coin start
Coin switch can be connected to a counter
