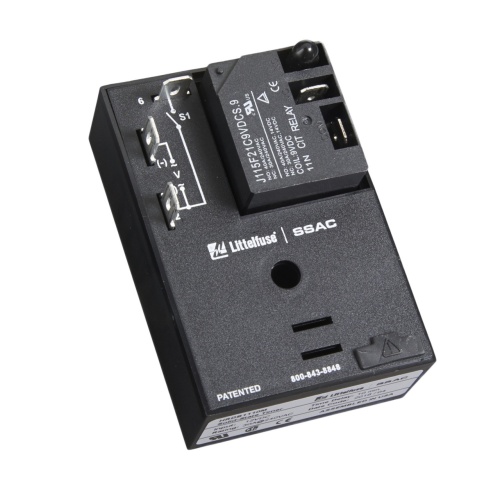

Littelfuse HRDB124 Time Delay Relay - 12 Volt (DC), Double Throw, Single Pole
Normally In Stock
Code: 566169
Littelfuse HRDB124 - Delay On Break Timer Series - 12 Volt (DC) - Surface mount with 1 #10 (M5 x 0.8) screw (MUST BUY IN PACKS OF 10)
Condition: New
Usually ships Same Day or Next Day$135.37
Sale Price
$112.81
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Littelfuse HRDB124 is a versatile general-purpose relay with a load rating of approximately 30A for SPDT-NO and 15A for SPDT-NC. It offers reliable performance with a tolerance of -15% to 20% and repeat accuracy of ±0.5% or 20ms. With a compact design and quick-connect terminals, it is easy to install and operate. The relay is encapsulated for added protection and has a low power consumption of ≤2W. It also provides surge protection and has a high dielectric breakdown of ≥2000V.
Specifications
Relay Throws
Double Throw
Relay Poles
Single Pole
Manufacturer
Littelfuse
Component
Time Delay Relay
Relay Mounting
Surface Mount
Coil Voltage Rating
12 Volt (DC)
Relay Timing Range
1 - 100 M
Sub Component
Delay On Break
Features
Microcontroller based
Compact, low cost design
Isolated, 30A, SPDT, NO output contacts
